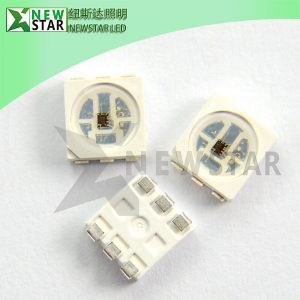

Addressable 6pin NS107S RGB digital LED Chips 5050 replace APA102
NS107S is the upgrade type of APA107, PWM refresh rate 27kHz, Oscillator Frequency is 40MHz.
NS107S RGB LED chip is same with APA107 with a type ic for the three-color RGB Diming control strip and string ,This ic using the CMOS process to provide three-color RGB LED output driver to adjust the output with 256 gray scale and 32 brightness adjustment,NS107S RGB LED diodes with 2 signal output way, one is clock ,another is data, the clock and data is synchronizated ,so that the crystal cascade piece of output movement is sychronizated.Micro NS107S 2020 Dotstar Addressable 2020 Digital LED Chips

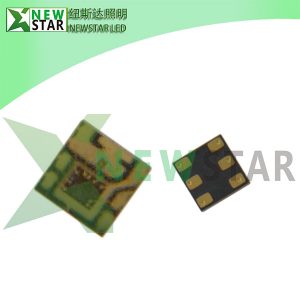

NS107S 2020 Pixel LED Chip, 27Khz refresh rate, 40M transfer speed, can replace APA102 2020 directly, no need change PCB or control protocol.

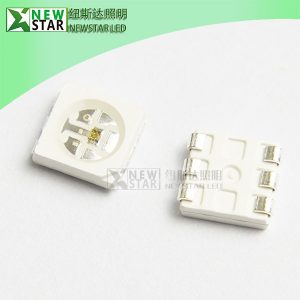

NS8808 DC12V addressable LED Chip replace WS2815
NS8808 DC12V Pixel LED Chip, it is same protocol with ws2815, the only one pixel LEDs can replace ws2815 directly at this moment, and it is more stable than ws2815 after long time tested.

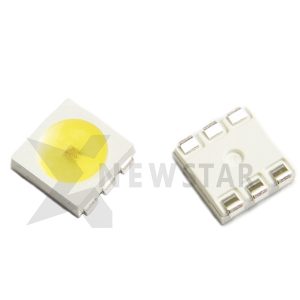

DC12V Dual-signal wires version, signal break-point continuous transmission. Any pixel’s failure won’t affect signal transfer and total emitting effect.Dotstar APA107 5050 White 3000K 4000K 6000K Addressable LED Chip
APA107 White leds is same protocol with APA102, it is economic type with 9khz PWM refresh rate.
If need faster Dotstar LEDs, please use NS107 LEDs, the PWM refresh date is 27Khz, 5050/3535/2020 options.Neopixel Micro EC20 SK6812 2020 Smart Pixel LED chips
We Newstar produce Micro sk6812 2020 led chip by ourself.

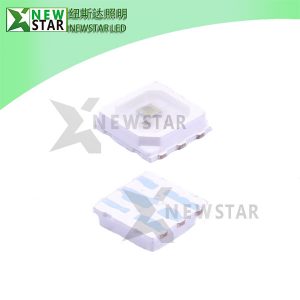

Smart NS107S 3535 RGB Pixel Addressable LED Chip
NS107S 3535 Pixel LED Chip, the refresh frequency reaches to 27KHz

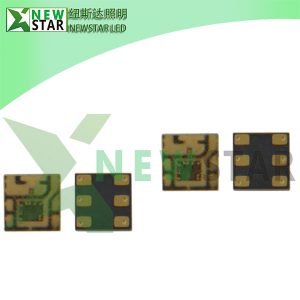

Dotstar Smart APA107 2020 Micro Addressable Pixel LED Chip
APA107 2020 Pixel LED Chip, 9Khz refresh rate, 30M transfer speed
If you need higher PWM refresh rate, please use NS107S, the upgrade of APA107.
