DC12V DC24V DMX512 RGB Pixel Digital LED Strip Lights

DMX512 RGB Pixel Digital LED Strip Lights,

1,No matter what or how many ic broken,the led strip will work normally.
2,Support standard dmx512 control system
3,DMX address increase automaticly from 1 to 512/1024/1536
4,DMX address can be reset by address setter at every segme
5,DMX512 Pixel Digital LED strip Lights Connection:
DC+: connect to power supply DC+
DMX+ (A): connect to controller DMX+ (A)
DMX-  (B): connect to controller DMX- (B)
GND: connect to power supply GND & controller GND

——————————————————————————————————————————————

Connection Diagram

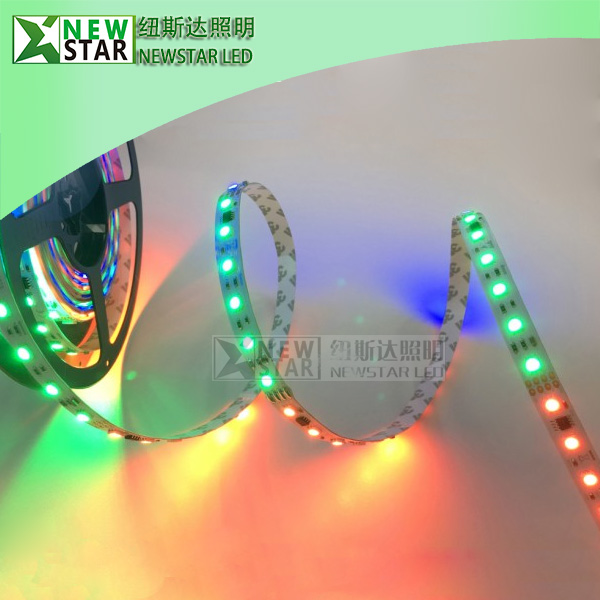

30LEDs/m DC12V DMX512 RGB Pixel Digital LED Strip Lights Parameters

OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-512S30-12V,   LED Q’ty: 30LEDs/m,  Pixels: 10pcs/m ,  Gray Scale:256
Power/m: 8W,    Input voltage: DC12V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 33.08mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every 3 LEDs is cuttable,  PCB Width: 12mm
For the DMX512 RGB Pixel Digital LED Strip Lights, no matter what or how many ic broken, the led strip will work normally.

60LEDs/m DC24V DMX512 RGB Pixel Digital LED Strip Lights Parameters

OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-512S60-24V,   LED Q’ty: 60LEDs/m,  Pixels: 10pcs/m ,  Gray Scale:256
Power/m: 15W,    Input voltage: DC24V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 16.54mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every 6 LEDs is cuttable,  PCB Width: 12mm
For the DMX512 RGB Pixel Digital LED Strip Lights, no matter what or how many ic broken, the led strip will work normally.
