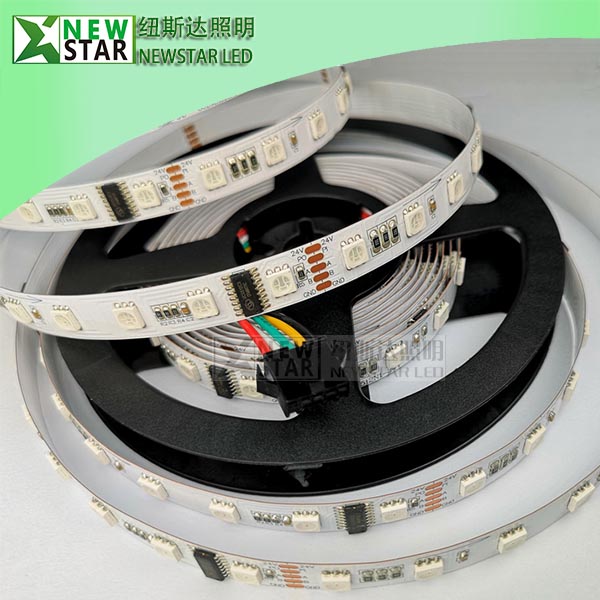

DC24V Addressable 60leds 5wires DMX512 RGB LED Strips

DC24V Addressable 60leds 5wires DMX512 RGB LED Strips

-24V Addressable RGB Led Strip
-Individually Programmable Led Strip
-Address Can Be Written
-Break Point Continued
-Two Data Lines, Two Power Lines,12mm Wide White PCB, 256 Gray Grade, Can Getting any Effects With Address Programming By the DMX Controller.
-Big Advantage is: Special: *Address Can Be Writen *Break Point Continued.

  • Description
  • Inquiry

DMX RGB LED Strips
Our DMX RGB flexible led strip is super strong dmx signal strip with A,B signal parallel signal transfer. 5 cables ( PI/PO address writing wire, A(Dmx+),B(Dmx-),GND), and DC24V,the MAX485 is inside the DMX512 IC ,It can be cut ,can be parallel and series connection .

CCT(K):  Addressable RGB
IC Type:  DMX512
LED Qty: 60LED Per Meter
Pixel Qty:  10pixels per Meter
Input voltage:  DC24V
Cuttable Length: each 6leds is cuttable
LED type: SMD5050
RA: RGB
IP: IP20/65/67/68
Application condition: Indoor/Outdoor
Quantity: 5M/Reel
Products size: 5000*12*2.5MM
Warranty: 3years
Working hour: 50000H
Ambient temperture: -20~45
Energy grade: A+
