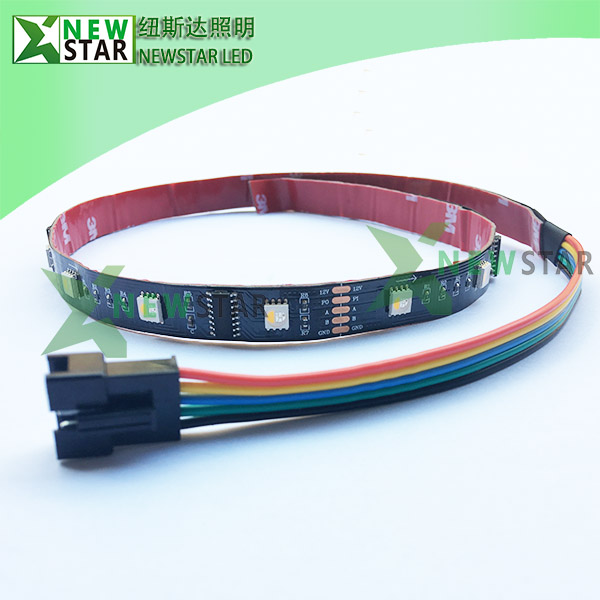

Digital DMX512 addressable RGBW LED Strips

Digital DMX512 addressable RGBW LED Strips

Newstar’s DMX512 led strips adopt DMX512 protocol, can be controlled by DMX controller without any decoder.
Five cables, +5V(12v, 24V), PI address writing wire, A(DA+), B(DA-), GND.
Voltage: DC5V, DC12V, DC24V

Categories:
  • Description
  • Inquiry

Features:

1. Newstar’s DMX512 led strips adopt DMX512 protocol, and the signal is parallel not series.
3. The parallel DMX512 signal could avoid RGBW LEDs color influenced by the failure of one light in serial connection.
3. Five cables: +DC5V(12V/24V), PI address writing wire, A(DA+), B(DA-), GND
4. DMX512 LED strip lights, can be controlled by DMX controller without any decoder, and you can use the decoder to save more channels and control more pixels.
5. Communication between DMX512 led digital strips are synchronized perfectly under support of Artnet / DMX512 led controllers.
6. Vivid lighting performance operated by Madrix software, Artnet / DMX512 led controllers.

—————————————————————————————————————————-

DC5V 32LEDs/m DMX512 RGBW Pixel LED Strip Lights Parameters


   OPTICAL PARAMETERBASIC PARAMETER
Model No.: NS-512S32-5V,   LED Q’ty: 32LEDs/m,  Pixels: 32pcs ,  Gray Scale:256
IC type: DMX512,  Power/m: 12.8W,    Input voltage: DC5V,   Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 31.25mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 12mm

DC12V 72LEDs/m DMX512 RGBW Pixel LED Strip Lights Parameters


    OPTICAL PARAMETERBASIC PARAMETER
Model No.: NS-512S36-12V,   LED Q’ty: 36LEDs/m,  Pixels: 12pcs ,  Gray Scale:256
IC type: DMX512,  Power/m: 11.5W,    Input voltage: DC12V,   Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 83.33mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every 3LEDs is cuttable,  PCB Width: 12mm

DC24V 60LEDs/m DMX512 RGBW Pixel LED Strip Lights Parameters


    OPTICAL PARAMETERBASIC PARAMETER
Model No.: NS-512S60-24V,   LED Q’ty: 60LEDs/m,  Pixels: 10pcs ,  Gray Scale:256
IC type: DMX512,  Power/m: 19W,    Input voltage: DC24V,   Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 100mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every 6LEDs is cuttable,  PCB Width: 12mm

DC24V 60LEDs/m UCS2904 RGBW Pixel LED Strip Lights Parameters


   OPTICAL PARAMETERBASIC PARAMETER
Model No.: NS-2904S60-24V,   LED Q’ty: 60LEDs/m,  Pixels: 10pcs ,  Gray Scale:256
IC Type: UCS2904,  Power/m: 19W,    Input voltage: DC24V,   Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 100mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every 6LEDs is cuttable,  PCB Width: 10mm
Compatiable with SK6812 RGBW pixel led strip tape
