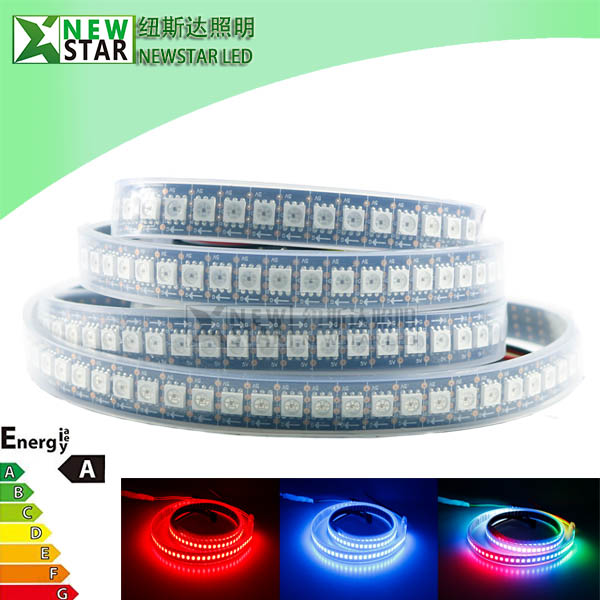

Dotstar APA107 RGB Pixel Digital LED Strips

Dotstar APA107 RGB Pixel Digital LED Strips

  APA107 is a type ic for the three-color RGB Diming control strip and string ,This ic using the CMOS process to provide three-color RGB LED output driver to adjust the output with 256 gray scale and 32 brightness adjustment, APA107 with 2 signal output way, one is clock ,another is data, the clock and data is synchronizated,so that the crystal cascade piece of output movement is sychronizated.

If need higher PWM refresh rate LED Strip to replace Dotstar APA102, please choose NS107S LED Strips.

Categories:
  • Description
  • Inquiry

Features:

1, Control IC included,supporting numerous color-change effects.
2, Absolutely addressable,each IC built inside RGB LED.
3, Each IC control one leds.
4, APA107 have 4 Wire input and output : Data ,Clock ,GND ,Anode, build in ic, double signal .
5, Grey scale 256, 256(Red)*256(Green)*256(Blue) colors that APA107 LED can change to. Keep LED show smooth color effect when changing color.

———————————————————————————————————————————————————–

30LEDs/m APA107 Pixel Digital LED Strips Parameters


OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-107S30-5V,   LED Q’ty: 30LEDs/m,  Pixels: 30/m ,  Gray Scale:256
Power/m: 9W,    Input voltage: DC5V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 33.08mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 10mm
The upgraded type of APA102 Pixel Digital LED Strip Lights.

60LEDs/m APA107 Pixel Digital LED Strips Parameters


OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-107S60-5V,   LED Q’ty: 60LEDs/m,  Pixels: 60/m ,  Gray Scale:256
Power/m: 18W,    Input voltage: DC5V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 16.54mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 10mm
The upgraded type of APA102 Pixel digital LED strip Lights.

72LEDs/m APA107 Pixel Digital LED Strips Parameters


OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-107S72-5V,   LED Q’ty: 72LEDs/m,  Pixels: 72/m ,  Gray Scale:256
Power/m: 21.6W,    Input voltage: DC5V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 13.78mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 12mm
The upgraded type of APA102 Pixel digital LED Strip Lights.

144LEDs/m APA107 Pixel Digital LED Strips Parameters


OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-107S144-5V,   LED Q’ty: 144LEDs/m,  Pixels: 144/m ,  Gray Scale:256
Power/m: 43.2W,    Input voltage: DC5V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 6.9mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 10mm
The upgraded type of APA102 Pixel Digital LED Strip Lights.

(APA107 LED CHIP DATASHEET)

APA107 LED Strips Connections:
