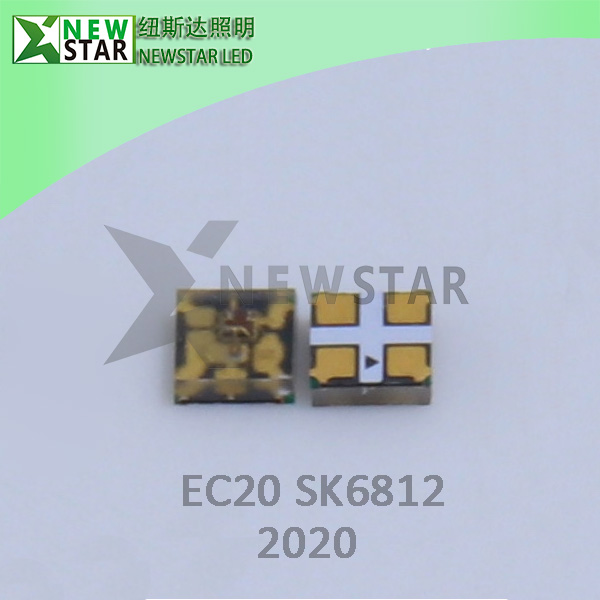

Neopixel Micro EC20 SK6812 2020 Smart Pixel LED chips

We Newstar produce Micro sk6812 2020 led chip by ourself.

Categories:
  • Description
  • Inquiry

Product Overview :
  EC20-6812 2020 is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 2020 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control
circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator.
  The data protocol being used is unipolar RZ communication mode. The 24-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed.
  The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.

Description:
1, Top SMD internal integrated high quality external control line serial cascade constant current IC;
2, control circuit and the RGB chip in SMD 2020 components, to form a complete control of pixel, color
mixing uniformity and consistency;
3, built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform
distortion will not guarantee a line;
4, The built-in power on reset and reset circuit, the power does not work;
5, gray level adjusting circuit (256 level gray scale adjustable);
6, red drive special treatment, color balance;
7, line data transmission;
8, plastic forward strengthening technology, the transmission distance between two points over 10M;
9, Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec

Mechanical Dimensions:

PIN configuration


Product welding plate size


More details, please view the DATASHEET.
