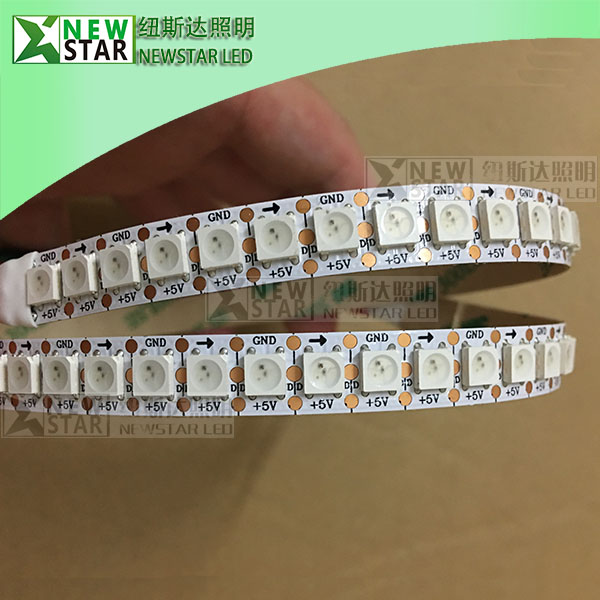

New APA105 144LEDs 10mm PCB Pixel LED Strips

APA105 Pixel Digital LED Strips adopted built-in IC and Capacitance.
– Top SMD internal integrated high quality external control line serial cascade constant current IC, built-in capacitance.
– control circuit and the RGB chip in SMD 5050 components, to form a complete control of pixel, color mixing uniformity and consistency;
– built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line;
– The built-in power on reset and reset circuit, the power does not work;
– gray level adjusting circuit (256 level gray scale adjustable);
– red drive special treatment, color balance;
– line data transmission;
– plastic forward strengthening technology, the transmission distance between two points over 10M;
– data transmission frequency up to 800Kbps, when the refresh rate of 30 frames per second, a cascade of not less than 1024;
– built-in powerpolarity protection module, powerpolarity will not damage.

——————————————————————————————————————————————–

30LEDs/m APA105 RGB Pixel Digital LED Strips Parameters

OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-105S30-5V,   LED Q’ty: 30LEDs/m,  Pixels: 30/m ,  Gray Scale:256
Power/m: 9W,    Input voltage: DC5V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 33.08mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 8/10mm
APA105 Pixel digital led strip lights adopted buillt-in IC and Capacitance pixel led chip.

60LEDs/m APA105 RGB Pixel Digital LED Strips Parameters

OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-105S60-5V,   LED Q’ty: 60LEDs/m,  Pixels: 60/m ,  Gray Scale:256
Power/m: 18W,    Input voltage: DC5V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 16.54mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 8/10mm
APA105 Pixel digital led strip lights adopted built-in IC and Capacitance LED Chip.

72LEDs/m APA105 RGB Pixel Digital LED Strips Parameters

OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-1052S72-5V,   LED Q’ty: 72LEDs/m,  Pixels: 72/m ,  Gray Scale:256
Power/m: 21.6W,    Input voltage: DC5V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 13.78mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 8/10mm
APA105 pixel digital led strip lights adopted built-in IC and Capacitance Pixel LED Chip.

94LEDs/m APA105 RGB Pixel Digital LED Strips Parameters

OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-105S96-5V,   LED Q’ty: 96LEDs/m,  Pixels: 96/m ,  Gray Scale:256
Power/m: 28.2W,    Input voltage: DC5V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 10.33mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 10mm
APA105 pixel digital led strip lights adopted built-in IC and Capacitance Pixel LED Chip.

144LEDs/m APA105 RGB Pixel Digital LED Strips Parameters

OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-1052S144-5V,   LED Q’ty: 144LEDs/m,  Pixels: 144/m ,  Gray Scale:256
Power/m: 43.2W,    Input voltage: DC5V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 6.9mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 10mm
APA105 pixel digital led strip lights adopted built-in IC and Capacitance Pixel LED Chip.
