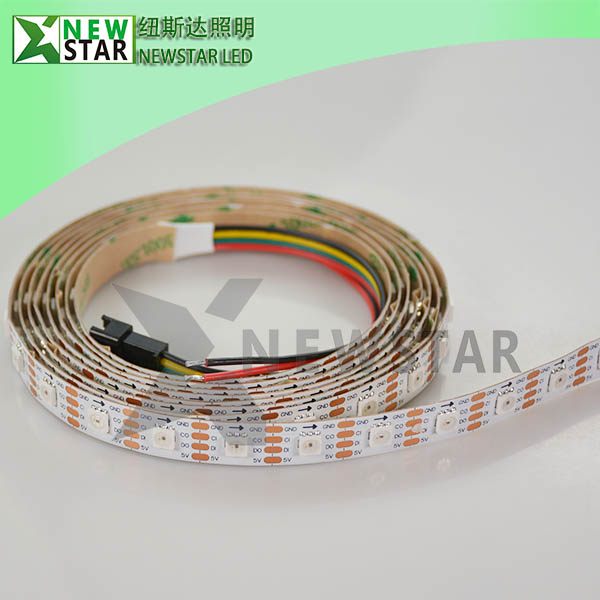

NS107S RGB Pixel Digital LED Strips upgrade of APA107
NS107S LED Strip, the PWM refresh rate is more than 27kHz, run speed can be 40Mhz, faster and much better than Dotstar APA102.
NS107S series have 5050/3535/2020 size RGB and White color LED chip, it has the highest PWM refresh rate.
- Description
- Inquiry
Features:
1, Control IC included,supporting numerous color-change effects.
2, Absolutely addressable,each IC built inside RGB LED.
3, Each IC control one leds.
4, NS107S have 4 Wire input and output : Data ,Clock ,GND ,Anode, build in ic, double signal .
5, NS107S have 8bit and 16bit options.
———————————————————————————————————————————————————–
30LEDs/m NS107S Pixel Digital LED Strips Parameters
 OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-107SS30-5V,  LED Q’ty: 30LEDs/m, Pixels: 30/m , Gray Scale:256
Power/m: 9W,   Input voltage: DC5V,   Max current/LED: 20Ma,    Warranty: 3years,
Illumination Angle: 120° ,  Working temperature: -20℃~+45℃, Working hour: 30000h
Energy grade: A,   SMD LED spacing: 33.08mm,  CRI(Ra): >80Ra, PCB: White/Black
Minim cuttable length: every LED is cuttable, PCB Width: 10mm
The upgraded type of APA107 Pixel Digital LED Strip Lights.
60LEDs/m NS107S Pixel Digital LED Strips Parameters
  OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-107SS60-5V,  LED Q’ty: 60LEDs/m, Pixels: 60/m , Gray Scale:256
Power/m: 18W,   Input voltage: DC5V,   Max current/LED: 20Ma,    Warranty: 3years,
Illumination Angle: 120° ,  Working temperature: -20℃~+45℃, Working hour: 30000h
Energy grade: A,   SMD LED spacing: 16.54mm,  CRI(Ra): >80Ra, PCB: White/Black
Minim cuttable length: every LED is cuttable, PCB Width: 10mm
The upgraded type of APA107 Pixel digital LED strip Lights.
72LEDs/m NS107S Pixel Digital LED Strips Parameters
  OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-107SS72-5V,  LED Q’ty: 72LEDs/m, Pixels: 72/m , Gray Scale:256
Power/m: 21.6W,   Input voltage: DC5V,   Max current/LED: 20Ma,    Warranty: 3years,
Illumination Angle: 120° ,  Working temperature: -20℃~+45℃, Working hour: 30000h
Energy grade: A,   SMD LED spacing: 13.78mm,  CRI(Ra): >80Ra, PCB: White/Black
Minim cuttable length: every LED is cuttable, PCB Width: 12mm
The upgraded type of APA107Â Pixel digital LED Strip Lights.Â
144LEDs/m NS107S Pixel Digital LED Strips Parameters
  OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-107SS144-5V,  LED Q’ty: 144LEDs/m, Pixels: 144/m , Gray Scale:256
Power/m: 43.2W,   Input voltage: DC5V,   Max current/LED: 20Ma,    Warranty: 3years,
Illumination Angle: 120° ,  Working temperature: -20℃~+45℃, Working hour: 30000h
Energy grade: A,   SMD LED spacing: 6.9mm,  CRI(Ra): >80Ra, PCB: White/Black
Minim cuttable length: every LED is cuttable, PCB Width: 10mm
The upgraded type of APA107 Pixel Digital LED Strip Lights.Â
NS107S LED Strip Connections:
