SK6812 3535 Pixel LED Chip RGB addressable components

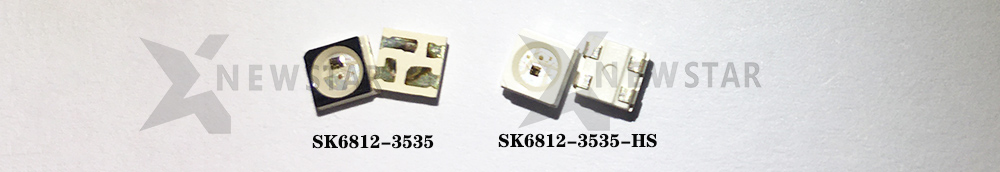

SK6812-3535 and SK6812-3535-HS

Features:
SK6812 3535 RGB is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 35×35 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator.
The data protocol being used is unipolar NRZ communication mode. The 24-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed.
The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.

Application
LED dream color strip, portable fantasy audio, computer chassis, fan decoration light, LED flexible full-color pixel screen, LED color clothing, LED color model, keyboard, smart bracelet, angel eyes, full color LED display, LED lighting glass, automobile luminous sign, magic LED handbag, LED smart women jewelry, dream color shoes and all other color LED lighting application.
Optional customization
1)IC current, 5MA (SK6805-3535-HS) and 12MA (SK6812-3535-HS)

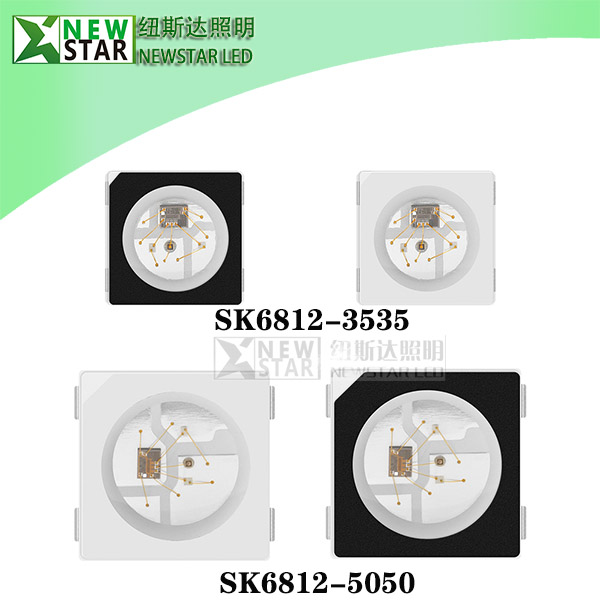

2)Surface of the bracket, white fact and black face(-B)
3)The surface glue of led,transparent(SK6812-3535-HS) and diffuse(SK6812-3535-HS-D)

Mechanical Dimensions:

（SK6812 3535 4feet type）

(SK6812 3535 flat type)
