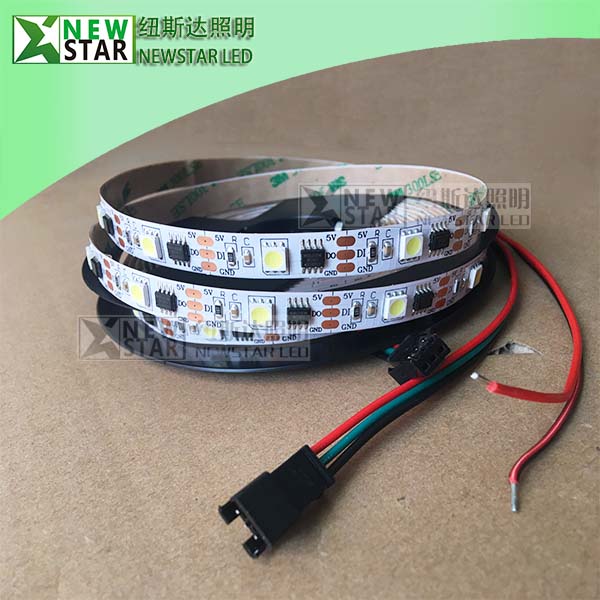

WS2811 one LED one pixel pixel addressable 5v white led strip-1

WS2811 1LED/Pixel Addressable LED Strips

Newstar’s WS2811 LED Strip can be White/RGB/RGBW/RGBCCT color, as the WS2811 IC is external, not built-in the LEDs, so we can use all kinds of LEDs to make the pixel led strips we need, such as RGB/RGBW/RGBCCT/CCT/White LEDs.
For example, 8000k/10000k white addressable led strips, CCT adjustable 3000k to 10000k pixel addressable led strip, rgbcct addressable led strips…etc.

Categories: ,
  • Description
  • Inquiry

What is WS2811 IC?
    The WS2811 is 3 output channels special for LED driver circuit. Its internal includes intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 5-12V voltage
programmable constant current output drive. In the purpose of reduce power supply ripple, the 3 output channels designed to delay turn-on function.
  IC use single NZR communication mode. After the chip power-on reset, the DIN port receive data from controller, the first IC collect initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade IC through the DO port. After transmission for each chip, the signal to reduce 24bit. IC adopt auto reshaping transmit technology, making the chip cascade number is not limited the signal transmission, only depend on the speed of signal transmission.
  The data latch of IC depend on the received 24bit data produce different duty ratio signal at OUTR, OUTG, OUTB port. All chip synchronous send the received data to each segment when the DIN port input a reset signal. It will receive new data again After the reset signal finished. Before a new reset signal received, the control signal of OUTR ,OUTG, OUTB port unchanged. IC sent PWM data that received justly to OUTR, OUTG, OUTB port, after receive a low voltage reset signal the time retain over 280μs.

1, PIN

2, Typical Application Circuit

 a) Supply voltage=5V, 1 LED for each channel and Constant Current driving of 16.5mA

 b) Supply voltage=12V, 3 LED for each channel and Constant Current driving of 16.5mA

More details about the WS2811 IC, please contact us.

——————————————————————————————————————————————————————

WS2811 Pixel White Addressable LED Strips Parameters


 OPTICAL PARAMETERBASIC PARAMETER
Model No.: NS-2811W***-5V,   LED Q’ty: 60LEDs/m,  Pixels: 60/m ,  Gray Scale:256
LED Qty: 30/32/60/72/100/120LEDs/m
Pixels Qty: 30/32/60/72/100/120pcs
Color: White 3000k/4000k/6000k/8000k/10000k/15000k/20000k/25000k
Input Voltage: DC5V, Illumination Angle: 120°, -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 13.78mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 12mm
 Newstar’s White color LED strip with external WS2811 IC, can be all kinds of White Addressable LED strips.

WS2811 Pixel RGB Addressable LED Strips Parameters


 OPTICAL PARAMETERBASIC PARAMETER
Model No.: NS-2811W***-5V,   LED Q’ty: 60LEDs/m,  Pixels: 60/m ,  Gray Scale:256
LED Qty: 30/32/60/72/100/120LEDs/m
Pixels Qty: 30/32/60/72/100/120pcs
Color: White 3000k/4000k/6000k/8000k/10000k/15000k/20000k/25000k
Input Voltage: DC5V, Illumination Angle: 120°, -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 13.78mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 12mm
 Newstar’s White color LED strip with external WS2811 IC, can be all kinds of White Addressable LED strips.
