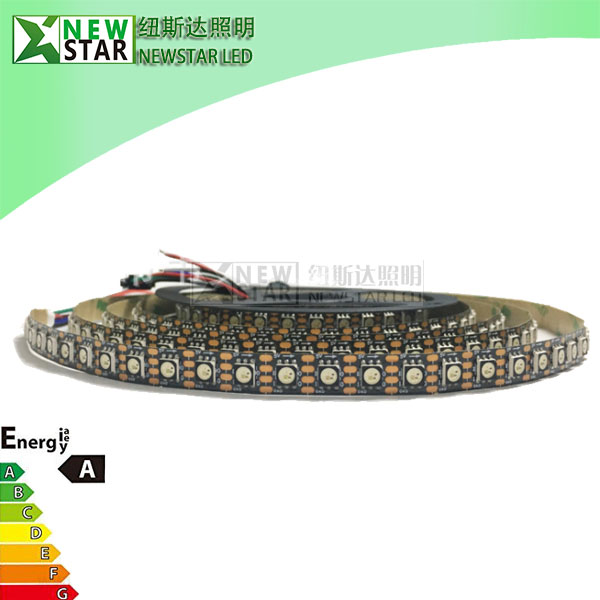

WS2813 100LEDs/m Pixel LED Strips
 10mm PCB WS2813 100LEDs/m Pixel LED Strip Lights adopts Newest WS2813 led chip with dual signal,and the capacitance is package inside of the 5050 led chip, so there are no capacitances on the PCB. Newstar’s newest WS2813 Pixel Digital LED Strip Lights is more stable than others, have 10 years experience in pixel LED production, and one led was broken will not affect another LED Working.
- Description
- Inquiry
Features:
1. WS2813 Pixel Digital LED Strip Lights,breakpoint continue,one led broken will not affect other LED working.
2. One LED chip with one WS2813 IC; Users can cut the ws2813 pixel digital LED strip lights every 1 LEDs.
3. Each LED is individually addressable, with 8 bits of green, red and blue data shifted in for 24 bit color.
4. With 4pin LED lamps for the digital strip.
5. Controller:we usually select SD controller,you also could use DMX controller,DMX decoder,Arduino,Artnet.
——————————————————————————————————————————————
100LEDs/m WS2813 Pixel Digital LED Strips Parameters
OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-2813S100-5V,  LED Q’ty: 100LEDs/m, Pixels: 100/m , Gray Scale:256
Power/m: 32W,   Input voltage: DC5V,   Max current/LED: 60Ma,    Warranty: 3years,
Illumination Angle: 120° ,  Working temperature: -20℃~+45℃, Working hour: 30000h
Energy grade: A,   SMD LED spacing: 10mm,  CRI(Ra): >80Ra, PCB: White/Black
Minim cuttable length: every LED is cuttable, PCB Width: 10mm
WS2813 Pixel digital led strip lights with breakpoint continue function, one pixel damaged will not affect the other LEDs working. Dual signal wires version, signal can jump to transfer
