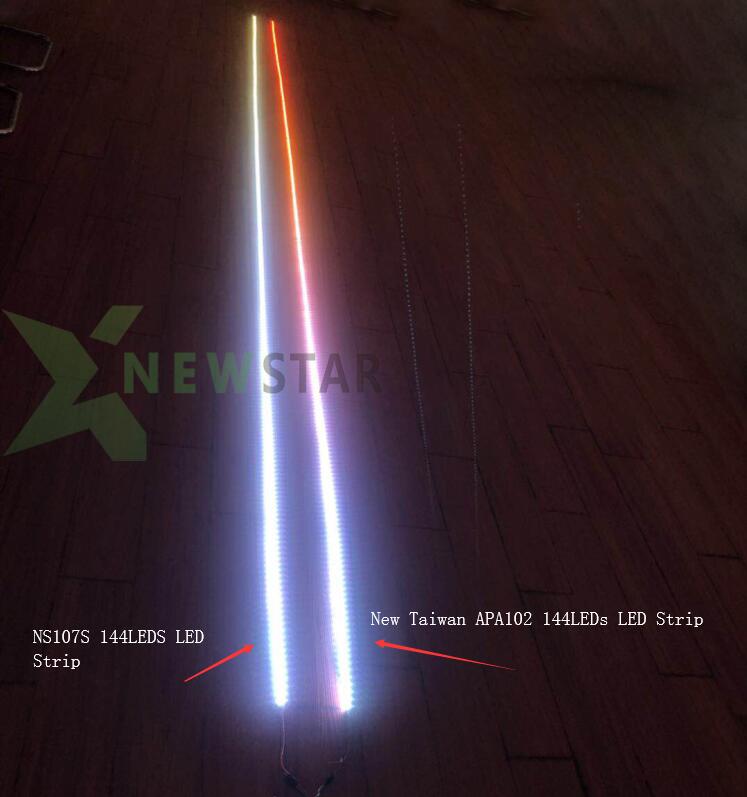

Below is one real tested for 144leds NS107S and 144LEDs APA102. You can see obviously voltage drop for APA102 after 30leds, after 0.5m no signal and all leds turn red. for NS107s, only the end has a little voltage drop. also NS107S is brightness than apa102.
