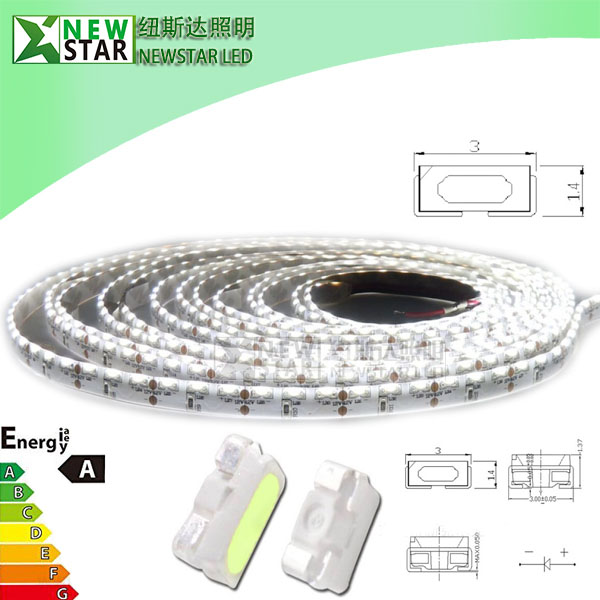

3014SMD Side view LED Strip Lights-1

90RA SMD3014 60leds 84leds 120leds 156leds Side View LED Strips

Newstar’s SMD2835 LED strip lights series have 90RA 95RA 97RA,it is Epistar High CRI and High brightness LED Strips, so it is an ideal solution for retail and other commercial applications which need high CRI or high brightneess to highlight features. we have Different kinds SMD2835 LED strips for options: 60LEDs/m, 120LEDs/m, 240LEDs/m SMD2835 led strip lights. And Customized design is warmly welcome, we can realize it according to our customer’s requirements.

Categories: , ,
  • Description
  • Inquiry

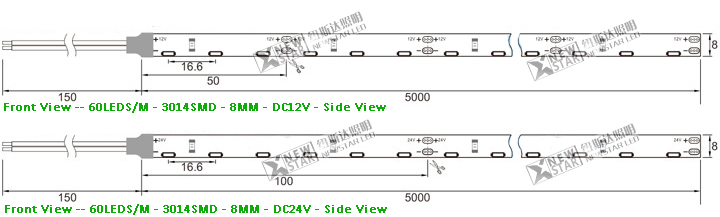

60LEDs/m SMD3014 Side view LED Strips Parameters

Technical Parameters

Product Name: 90RA 60Leds/M SMD3014 Side View Led Strips
Model No: NSS-3014-60S
Led Type: SMD3014
Led Quantity: 60Leds/M
Lumen/Meter: 430lm/Meter
Actual Power(w/m): 7.2W/Meter
Voltage: DC12V/DC24V.
CRI(Ra): >90
PCB Width: 8mm
Cuttable size: 50mm/12v, 100mm/24V
Color: Warm white/Natural white/Cool white
CCT(K): 2700K~6000K
IP Grade: IP65/IP67/IP68
Beam Angle: 120°
Ambient Temperature: -25℃ ~ +45℃
Warranty: 5-year or 30000hr whichever comes first
Length: 5Meter/Roll

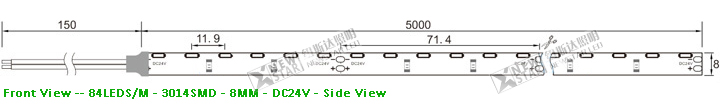

84LEDs/m SMD30145 Side View LED Stripts Parameters

Technical Parameters

Product Name: 90RA 84Leds/M SMD3014 Side View Led Strips
Model No: NSS-3014-84S
Led Type: SMD3014
Led Quantity: 84Leds/M
Lumen/Meter: 600lm/Meter
Actual Power(w/m): 10W/Meter
Voltage: DC24V.
CRI(Ra): >90
PCB Width: 8mm
Cuttable size: 71.4mm/24V
Color: Warm white/Natural white/Cool white
CCT(K): 2700K~6000K
IP Grade: IP65/IP67/IP68
Beam Angle: 120°
Ambient Temperature: -25℃ ~ +45℃
Warranty: 5-year or 30000hr whichever comes first
Length: 5Meter/Roll

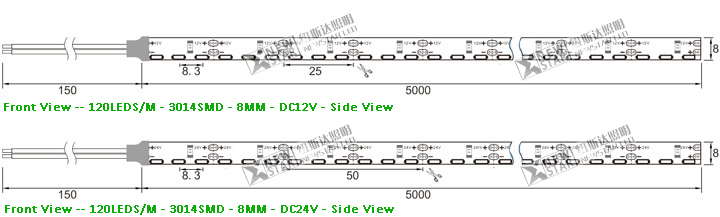

120LEDs/m SMD3014 Side View LED Strips Parameters

Technical Parameters

Product Name: 90RA 120Leds/M SMD3014 Side View Led Strips
Model No: NSS-3014-120S
Led Type: SMD3014
Led Quantity: 120Leds/M
Lumen/Meter: 880lm/Meter
Actual Power(w/m): 14.4W/Meter
Voltage: DC12V/DC24V.
CRI(Ra): >90
PCB Width: 8mm
Cuttable size: 25mm/12V, 50mm/24V
Color: Warm white/Natural white/Cool white
CCT(K): 2700K~6000K
IP Grade: IP65/IP67/IP68
Beam Angle: 120°
Ambient Temperature: -25℃ ~ +45℃
Warranty: 5-year or 30000hr whichever comes first
Length: 5Meter/Roll

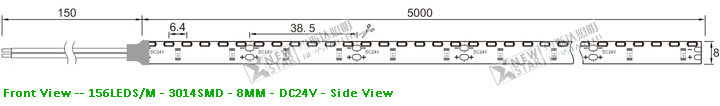

156LEDs/m SMD3014 Side View LED Strips Parameters

Technical Parameters

Product Name: 90RA 156Leds/M SMD3014 Side View Led Strips
Model No: NSS-3014-156S
Led Type: SMD3014
Led Quantity: 156Leds/M
Lumen/Meter: 1080lm/Meter
Actual Power(w/m): 15.6W/Meter
Voltage: DC24V.
CRI(Ra): >90
PCB Width: 8mm
Cuttable size: 38.5mm/24V
Color: Warm white/Natural white/Cool white
CCT(K): 2700K~6000K
IP Grade: IP65/IP67/IP68
Beam Angle: 120°
Ambient Temperature: -25℃ ~ +45℃
Warranty: 5-year or 30000hr whichever comes first
Length: 5Meter/Roll

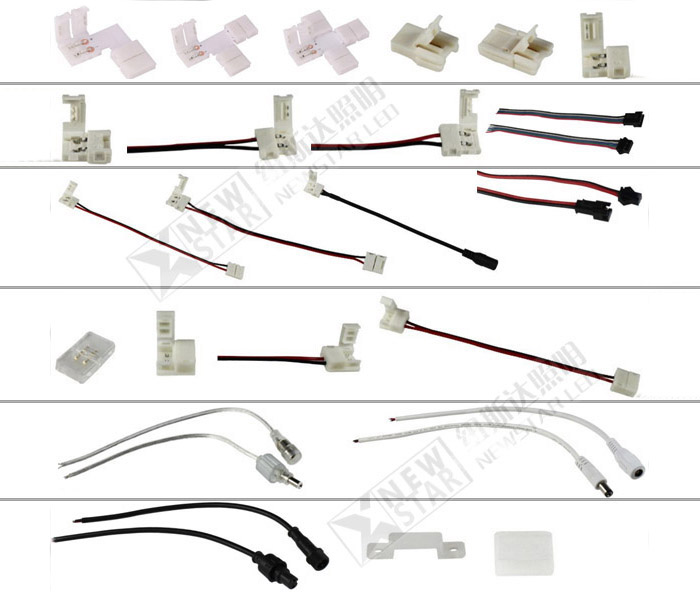

LED Strip Accessory

SMD3014 Side view LED Strips Application
1. Architectural decorative lighting
2) Path & contour marking
3) Edge-Lighting of transparent or diffused materials
4) Decorating lighting.
5) Architectural decoration Lighting
6) Backing lighting for under water project
7) Archway/Canopy & Bridge Edge Lighting
8) Amusement park/ Theater/ Aircraft cabin mood lighting
9) Furniture Decoration Lighting
10) Cove lighting
11) Channel letters lighting
12) Stairway Accent lighting
11. Cove lighting
