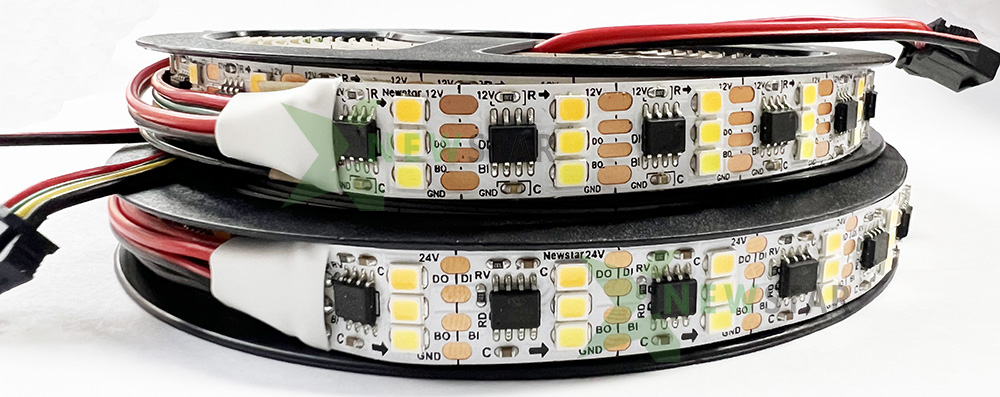

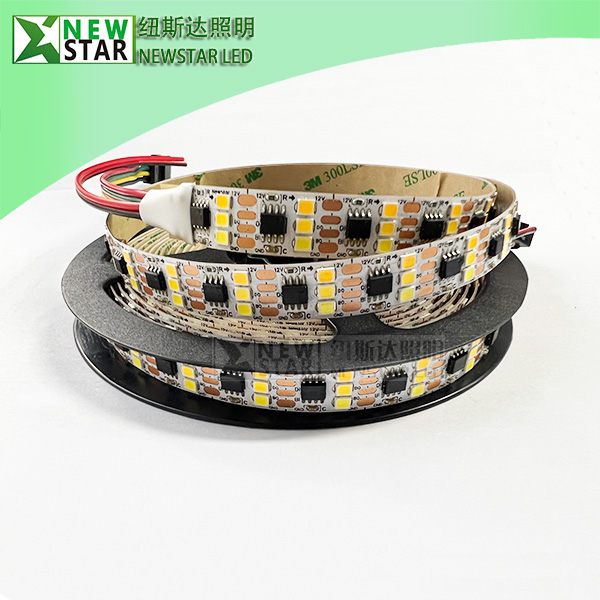

Addressable 3000k+4000k+6000k DC12V pixel 2835smd 180leds/m three white GS8208 LED tapes

Addressable 3000k+4000k+6000k DC12V pixel 2835smd 180leds/m three white GS8208 LED tapes

GS8208 3000k+4000k+6000k three white led strip with a new GS8208 IC chip for the digital led lighting products,for it is individual pixel strip,also can support dc12v,which can be greatly installat in the different place

Categories:
  • Description
  • Inquiry

GS8208 12V Individual IC Chip
  The GS8208 is a 3-channel constant current constant LED drive with resumable data transfers and internal display patterns. There are data transfers and internal display patterns. There are three open-drain constant current outputs, with a build-in PWM of in grayscale. The range of input power is frgrayscale. The range of input power is frgrayscale. The range of input power is frgrayscale. The range of input power is frgrayscale. The range of input power is from +9V to 15V, and voltage-endurance of LED port is +12V

GS8208 led strip has 3 advantage features:
 1.DC12V Individual Pixel, each pixel is addressabled
 2.Dual-Signal(one bad led,the signal still transfer)
 3.Built-in program effect,it can work without controller when power on it, but also can run as your own DIY programs with your controller system.
GS8208 LED Strip Features
1.SMD5050 RGB Lighting Source
2.Working voltage: DC12V
3.Emitting color:Dual white, 3000k+4000k+6000k cct
4.Gray Scale:256.
5.16.4 ft / 5m Reel,
6.Controlling Potocol:WS2811/UCS1903/GS8208
7.Viewing angle:120 degree,
8.Cuttable length: by every cutting mark(every led)
9.LED Qty :180LED/m,
10.Pixels :60pixels/m,
11.White/Black PCB,White/Black Face LED,
12.IP20,IP65,IP67,IP68 for different options.
