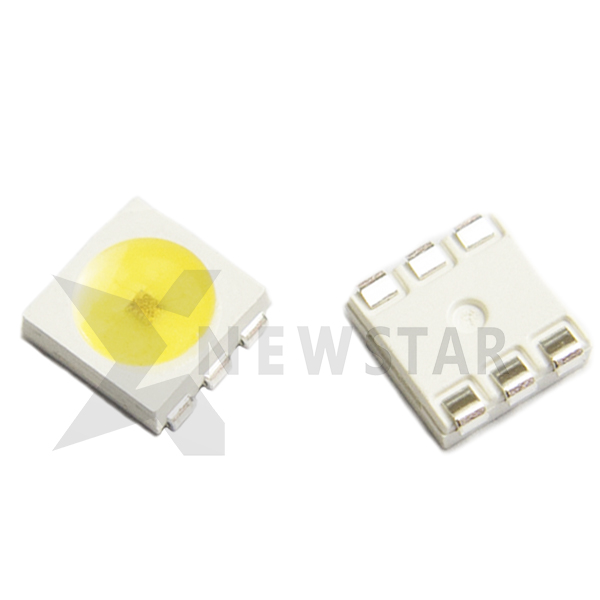

Dotstar APA107 5050 White 3000K 4000K 6000K Addressable LED Chip
APA107 White leds is same protocol with APA102, it is economic type with 9khz PWM refresh rate.
If need faster Dotstar LEDs, please use NS107 LEDs, the PWM refresh date is 27Khz, 5050/3535/2020 options.
- Description
- Inquiry
1, Product Description
APA107 White LED Chip is a type ic for the three-color RGB Diming control strip and string ,This ic using the CMOS process to provide three-color RGB LED output driver to adjust the output with 256 gray scale and 32 brightness adjustment, APA107 Pixel diodes with 2 signal output way , one is clock ,another is data, the clock and data is synchronizated, so that the crystal cascade piece of output movement is sychronizated.
2, Feature
-CMOS process,low voltage ,low consumption
-Synchronization of two-lane
-Choose positive output or negative RGB three-color LED output 8 bit(256 level) color set ,5bit(32 level) brightness adjustment Build-20ma constant current output
-With self-detection signal build in support for continuous oscillation PWMoutput ,can be maintained static screen
3, Application
-LED lamp
-LED Strip ,led pixel module
-LED billboard LED screen

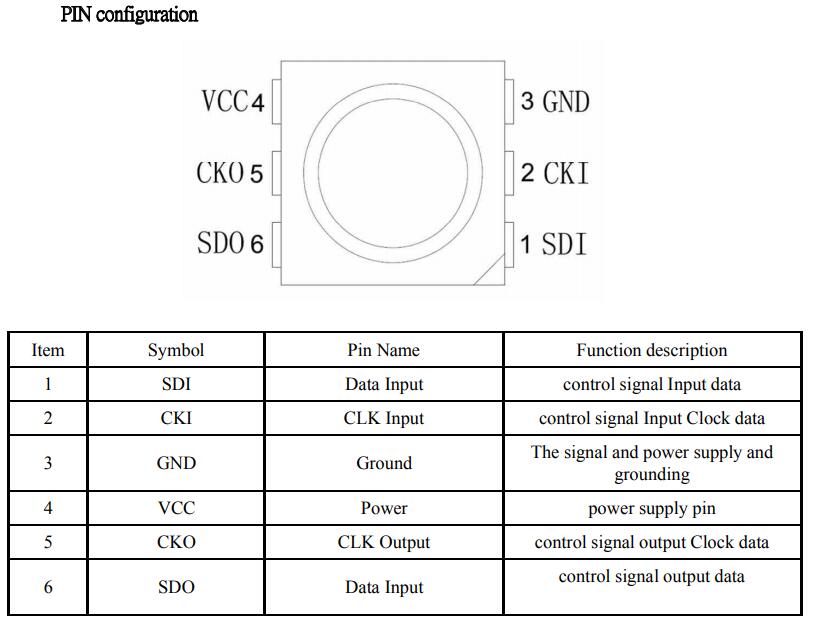

4, Pin function
More details, please check our datasheets.
