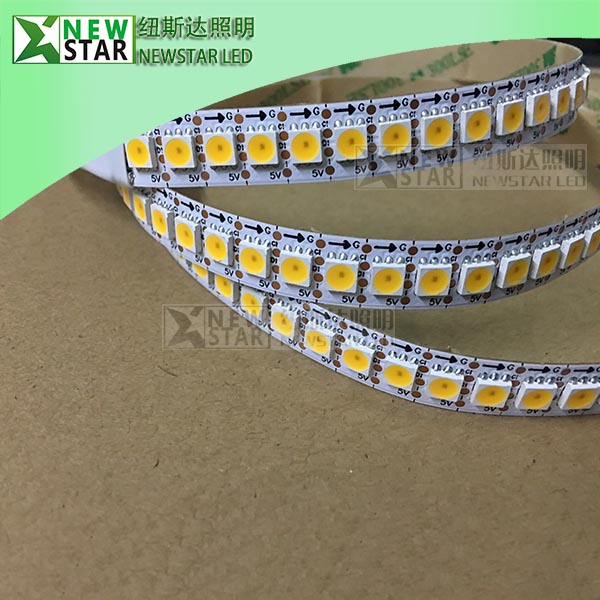

APA107 White Pixel Digital LED Strip Lights-6

Dotstar APA107 White Pixel Digital LED Strips

  APA107 is same protocol with APA102, can use same PCB, LED contoller and programs as APA102.
  APA107 White is a type ic for the three-color White Diming control strip and string,3000K/4000K/6000K options. This ic using the CMOS process to provide three-color White LED output driver to adjust the output with 256 gray scale and 32 brightness adjustment ,APA107 White LED with 2 signal output way , one is clock ,another is data, the clock and data is synchronizated ,so that the crystal cascade piece of output movement is sychronizated.

If you need high PWM, please choose APA107 upgrade type, named NS107S, 27KHZ PWM.

Categories:
  • Description
  • Inquiry

APA107 White LED Strips Features:

1, Clock+Data double wire transfer
2, Synchronization of two-lane
3, Choose positive output or negative White three-color LED output
4, 8 bit(256 level) color set ,5bit(32 level) brightness adjustment
5, Build-20ma constant current output
6, With self-detection signal build in support for continuous oscillation PWM output ,can be maintained static screen

———————————————————————————————————————————————————–

30LEDs/m APA107 White LED Strips Parameters


OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-107WS30-5V,   LED Q’ty: 30LEDs/m,  Pixels: 30/m ,  Gray Scale:256
Power/m: 9W,    Input voltage: DC5V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 33.08mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 10mm
The original APA107 White LED Strip factory in China.

60LEDs/m APA107 White LED Strips Parameters


 OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-107WS60-5V,   LED Q’ty: 60LEDs/m,  Pixels: 60/m ,  Gray Scale:256
Power/m: 18W,    Input voltage: DC5V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 16.54mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 10mm
APA107 White LED Strip have 3000K warm white, 4000K natural white, 6000K cool white.

72LEDs/m APA107 White LED Strips Parameters


 OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-107W72-5V,   LED Q’ty: 72LEDs/m,  Pixels: 72/m ,  Gray Scale:256
Power/m: 21.6W,    Input voltage: DC5V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 13.78mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 12mm
Waterproof Grade can be IP20/IP65/IP67/IP68.

144LEDs/m APA107 White LED Strips Parameters


 OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-107WS144-5V,   LED Q’ty: 144LEDs/m,  Pixels: 144/m ,  Gray Scale:256
Power/m: 43.2W,    Input voltage: DC5V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 6.9mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 10mm
OEM and ODM is available, APA107 White LED Strip can replace APA102 White LED strip as well.

Hardware SPI support is handy but not required. This makes them excellent for use with any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller, SparkCore, and any ‘raw’ microcontrollers/microprocessors.
