EC15 Neopixel SK6812 Micro 1515 Digital LED chips

EC15 Neopixel SK6812 Micro 1515 Digital LED chips

We Newstar produce EC15 SK6812 1515 digital Micro led chips by ourself.

Categories:
  • Description
  • Inquiry

Product Overview :

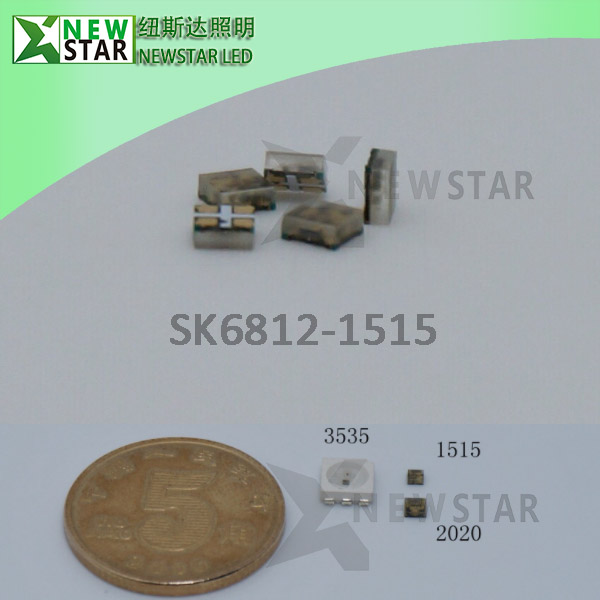

  EC15 SK6812 1515 is small size digital led chip, it an embedded control type LED light source integrating control circuit and light-emitting circuit. It contains intelligent digital interface data latch signal shaping and amplifying drive circuit, power supply voltage regulator circuit, built-in constant current circuit and high precision RC oscillator. The output driver adopts the patented PWM technology, which effectively ensures the high color consistency of the light in the pixel.
  The data protocol being used is unipolar RZ communication mode. The 24-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed.
  The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.



Description:
1, EC15 SK6812-1515 LED internal integrated high quality external control line serial cascade constant current IC;
2, built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform
distortion will not guarantee a line;
3, The built-in power on reset and reset circuit, the power does not work;
4, gray level adjusting circuit (256 level gray scale adjustable);
5, red drive special treatment, color balance;
6, line data transmission;
7, plastic forward strengthening technology, the transmission distance between two points over 10M;
8, Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec

Mechanical Dimensions:

PIN configuration

Product welding plate size

More details, please view the DATASHEET.
