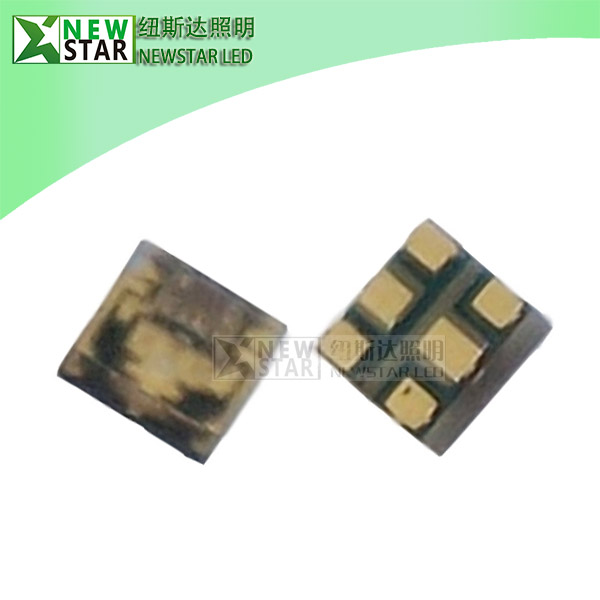

Economic NS108E 2020 65536 16bit RGB Pixel LED Chip

Economic NS108E 2020 65536 16bit RGB Pixel LED Chip

NS108E 16bit 2020 RGB LED is the economic type of NS107S/NS108 2020 LEDs, it is also High grayscale 65536 level with only 4Khz PWM.

If need Higher PWM with 16bit 655356 leds, please choose NS108 2020, not NS108E 2020.

Categories:
  • Description
  • Inquiry

NS108E 2020 is a two-wire transmission three-channel (RGB) drive control circuit and light-emitting circuit in one of the intelligent external control LED light source. Built-in constant current circuit and RC oscillator; internal integrated current gain control module, CMOS process, low voltage, low power consumption; when REXT is floating, the three-channel constant current driver default output of 18mA, the product is equipped with signal decoding module, Can also be REXT external resistor to adjust the required current, each output channel can output 16 (65536 level) gray adjustable linear current; using two-wire output, DATA data and synchronous CLK signal, so that the series chip The output action synchronization; refresh rate up to 4KHz, showing more delicate and smooth, the default power does not light.

● Top SMD internal integrated high quality external control line serial cascade constant current IC; 5V application; default on electric lights;
● Control circuit and the RGB chip in EC20 components, to form a complete control of pixel, color mixing uniformity and consistency;
● The Two-wire synchronous control, built-in bi-directional transmission function.
●RGB three-color output control, 64Bit (65536 level) color settings; each set of data are 1bit start code +15 Bit (32) brightness adjustment (red, green, blue three ports each 5bits, corresponding to S4 ~ S0) ; 48bits gray data (red, green, blue 16bits) composition.
● Three-way constant current drive, built-in high-precision and high stability of the oscillator, current error <± 5%.
● The maximum serial data input frequency 30MHZ, refresh rate of up to 4KHz, cascade up to 1024 points.
● REXT external resistance adjusting current (REXT floating, OUTR / G / B to about 18mA; REXT external resistor to adjust the maximum current of 60mA).

Mechanical Dimensions:


PIN configuration
