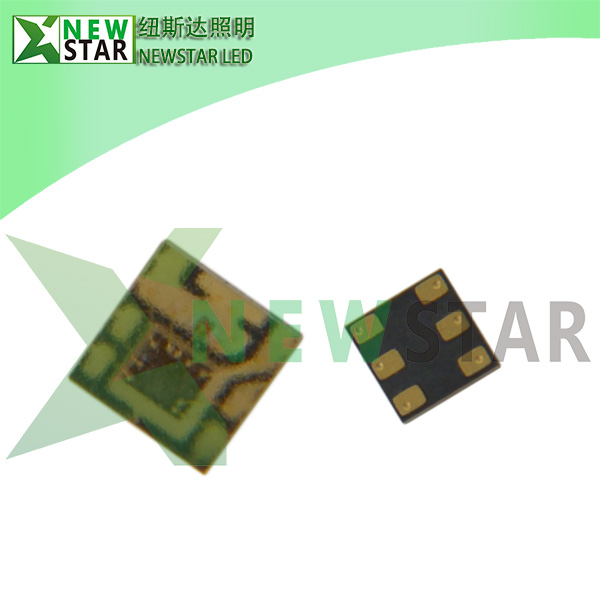

Micro NS107S 2020 Dotstar Addressable 2020 Digital LED Chips

Micro NS107S 2020 Dotstar Addressable 2020 Digital LED Chips

NS107S 2020 Pixel LED Chip, 27Khz refresh rate, 40M transfer speed, can replace APA102 2020 directly, no need change PCB or control protocol.

  • Description
  • Inquiry

  NS107S-2020 is an embedded control type LED light source integrating control circuit and light-emitting circuit. Products containing a signal decoding module, data buffer, a built-in constant current circuit and RC oscillator; CMOS, low voltage, low power consumption; 256 level grayscale PWM adjustment and 32 brightness adjustment; use the double output, Data and synchronization of the CLK signal, connected in series each wafer output action synchronization.

2. Main Application Field:
● Easy To Design
● Easy To Build
● Easy To Program

3. Description:
● LED internal integrated high quality external control line serial cascade constant current IC; 5V application; default on electric lights;
● The two-wire synchronous control.
●The three RGB output control, 8Bit (256) color; 5Bit (32) to adjust the brightness;
● The three constant current drive, self detection function specific signal
● The maximum frequency of 40MHZ serial data input, PWM refresh rate can be 27Khz.
● The double data transmission, built-in support uninterrupted oscillation PWM output, can maintain a static image.

More details, please contact us.
