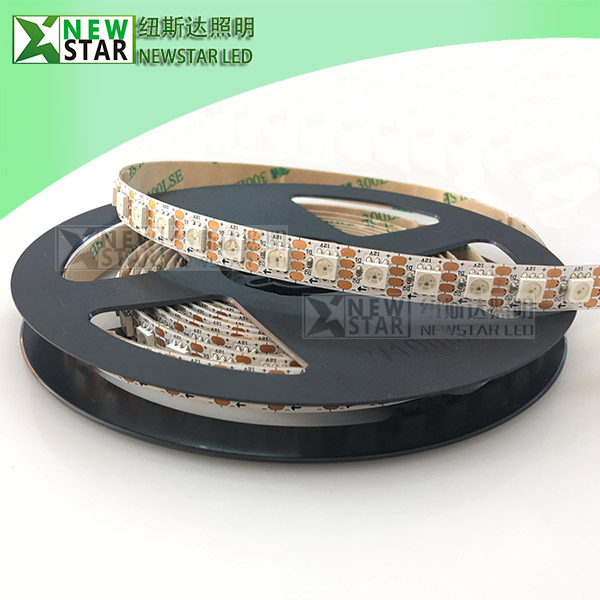

NS8808 DC12V digital LED Stripes replace WS2815/GS8208

NS8808 DC12V digital LED stripes, it is same protocol with ws2815, the only one pixel LEDs can replace ws2815 directly at this moment, and it is more stable than ws2815 after long time tested.
DC12V Dual-signal wires version, signal break-point continuous transmission. Any pixel’s failure won’t affect signal transfer and total emitting effect.

  • Description
  • Inquiry

NS8808  DC12V Digital led stripes
IC Type:NS8808
Emitting Color :Digital RGB
Working Voltage: 12VDC
Gray Level:256
Max Power:0.2W
Led Type: 5050 SMD LED

1.12v operating supply voltage with 7805 module inside
2·Default 17.5mA constant current output, the minimum is 11mA
3·Use e-RZ code, serial data frequency 800kHz
4·8bits data transfer, 12bits build-in GAMMA correction of PWM display
5·Built-in PWM technology, supports 8kHz PWM refresh rate
6·With resumable data transfer function, single chip damage does not infect data transmission
7·Built-in display pattern for the applications without a controller
8·Built-in automatic test mode, power-on and power-off protection
9·ESD: 2kV
10·working environment is from -40 ° C to + 85 ° C



Features:

1. NS88080 Pixel Digital LED Stripes, breakpoint continue,one led broken will not affect other LED working.
2. One LED chip with one NS8808 IC; Users can cut the NS8808 pixel digital LED strip lights every 1 LEDs.
3. Each LED is individually addressable. DC12V input is the greatest advantage.
4. With 6pin LED lamps for the digital strip.
5. Controller:we usually select SD controller,you also could use DMX controller,DMX decoder,Arduino,Artnet.



——————————————————————————————————————————————

30pixels/m NS8808 DC12V Digital LED Stripes Parameters


OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-8808S30-12V,   LED Q’ty: 30LEDs/m,  Pixels: 30/m ,  Gray Scale:256
Power/m: 6W,    Input voltage: DC12V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 33.08mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 10mm
NS8808 digital led stripes with DC12V input, and have breakpoint continue function, one pixel damaged will not affect the other LEDs working. Dual signal wires version, signal can jump to transfer

60pixels/m NS8808 DC12V Digital LED Stripes Parameters


OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-8808S60-12V,   LED Q’ty: 60LEDs/m,  Pixels: 60/m ,  Gray Scale:256
Power/m: 12W,    Input voltage: DC12V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 16.54mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 10mm
NS8808 Pixel digital led stripes lights with DC12V input, and have breakpoint continue function, one pixel damaged will not affect the other LEDs working. Dual signal wires version, signal can jump to transfer

72pixels/m NS8808 DC12V Digital LED Stripes Parameters


OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-8808S72-12V,   LED Q’ty: 72LEDs/m,  Pixels: 72/m ,  Gray Scale:256
Power/m: 14.4W,    Input voltage: DC12V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 13.78mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 12mm
NS8808 Pixel digital led strip lights with DC12V input, and have breakpoint continue function, one pixel damaged will not affect the other LEDs working. Dual signal wires version, signal can jump to transfer

96pixels/m NS8808 DC12V Digital LED Stripes Parameters


OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-8808S96-12V,   LED Q’ty: 72LEDs/m,  Pixels: 72/m ,  Gray Scale:256
Power/m: 19.2W,    Input voltage: DC12V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 13.78mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 12mm
NS8808 Pixel digital led strip lights with DC12V input, and have breakpoint continue function, one pixel damaged will not affect the other LEDs working. Dual signal wires version, signal can jump to transfer

144pixels/m NS8808 DC12V Digital LED Stripes Parameters


OPTICAL PARAMETERBASIC PARAMETER
Model No.: NS-2815S144-12V,   LED Q’ty: 144LEDs/m,  Pixels: 144/m ,  Gray Scale:256
Power/m: 28.8W,    Input voltage: DC12V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 6.9mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 10mm
NS8808 Pixel digital led stripes lights with DC12V input, and have breakpoint continue function, one pixel damaged will not affect the other LEDs working. Dual signal wires version, signal can jump to transfer



NS8808 DC12V LED Strip Conection Diagram
