Pixel Digital SK6812 RGBW LED Strips

SK6812 RGBW LED Strips Description:
● Top SMD internal integrated high quality external control line serial cascade constant current IC;
● control circuit and the chip in SMD 5050 components, to form a complete control of pixel, color
mixing uniformity and consistency;
●built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform
distortion will not guarantee a line;
●The built-in power on reset and reset circuit, the power does not work;
●gray level adjusting circuit (256 level gray scale adjustable);
● red drive special treatment, color balance;
● line data transmission;
● plastic forward strengthening technology, the transmission distance between two points over 10M;
●Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec

——————————————————————————————————————————————

30LEDs/m SK6812 RGBW Pixel Digital LED Strips Parameters

OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-6812RGBWS30-5V,   LED Q’ty: 30LEDs/m,  Pixels: 30/m ,  Gray Scale:256
Power/m: 9W,    Input voltage: DC5V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 33.08mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 10mm
SK6812 RGBW LED is the 5050 with built-in IC chipset.

60LEDs/m SK6812 RGBW Pixel Digital LED Strips Parameters

OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-6812RGBWS60-5V,   LED Q’ty: 60LEDs/m,  Pixels: 60/m ,  Gray Scale:256
Power/m: 18W,    Input voltage: DC5V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 16.54mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 10mm
SK6812 RGBW is 4 colors in one LED, and each LED can be addressable.

72LEDs/m SK6812 RGBW Pixel Digital LED Strips Parameters

OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-6812RGBWS72-5V,   LED Q’ty: 72LEDs/m,  Pixels: 72/m ,  Gray Scale:256
Power/m: 21.6W,    Input voltage: DC5V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 13.78mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 12mm
SK6812 RGBW LED, W can be 3000k, 4000k, 6000k.

94LEDs/m SK6812 RGBW Pixel Digital LED Strips Parameters

OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-6812RGBWS94-5V,   LED Q’ty: 94LEDs/m,  Pixels: 94/m ,  Gray Scale:256
Power/m: 28.2W,    Input voltage: DC5V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 10.33mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 12mm
SK6812 RGBW LED Strip Lights can be IP20/IP65/IP67/IP68 Waterproof.

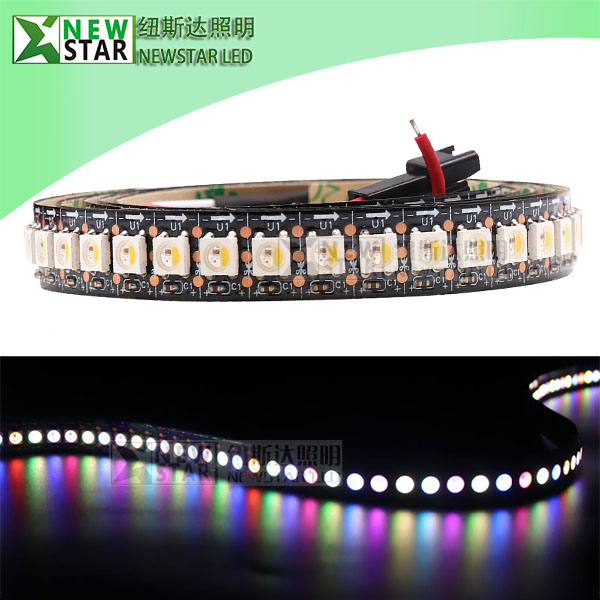

144LEDs/m SK6812 RGBW Pixel Digital LED Strips Parameters

OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-6812RGBWS144-5V,   LED Q’ty: 144LEDs/m,  Pixels: 144/m ,  Gray Scale:256
Power/m: 43.2W,    Input voltage: DC5V,    Max current/LED: 60Ma,     Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 6.9mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every LED is cuttable,  PCB Width: 12mm
SK6812 RGBW LED made by Newstar LED.
