RGB Pixel Addressable SK9822 LED Strips

●Brand:NEWSTAR
●IC type :SK9822 IC
●Gray level: 256
●View angle: 120°
●Input voltage: DC5V
●Color: Full color 24-bit
●FPCB board color: Black/White
●Power:144LEDs/m 42W/M
●Recommended power supply：DC5V12A (60W)
●Standard Reel Length:5meters/roll
●Model: 5050SMD SK9822 LED Strip Lights
●Operating Temperature:-20 ~ +50°C
●Length*Width*Height：5000mmx12mmx2.13mm
●Wave length(nm):Red,650nm ; Green,520nm ; Blue,460nm
●Waterproof level: IP30 non-waterproof●Brand:NEWSTAR
●IC type :SK9822 IC

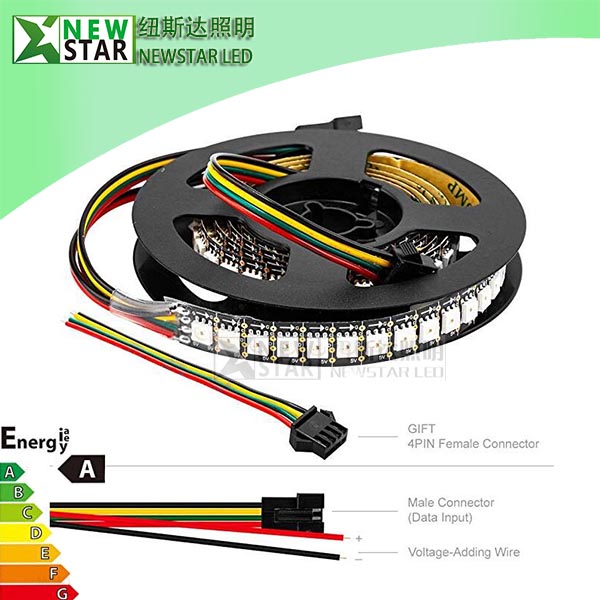

Package:
●5m SK9822 144LED Black PCB
●1x4pin female connector
●Power adapter or controller is not included

Note:
●Using voltage DC5V ,higher than 5V will destroy it.
●If you need better led strip performance, you can use an Android/IOS bluetooth controller or a K-1000C programmable controller.
●It is better to add DC5V voltage every 16.4ft, because the LEDs at the far end of the strip might be dimmer due to the added resistance and voltage drop that occurs as the current flows to that end of the strip.
●LED strip is made by 50cm FPCB, so there is a solder point each 50cm on strip. But this minor flaw has no any bad effect on the strip’s performance. In fact, most of the LED strips on the market are manufactured in half-meter lengths.

Each pin function
DO : Data Output
DI :Data Input
CO: Clock Output
CI: Clock Input
G: GND
5V: DC5V V+
