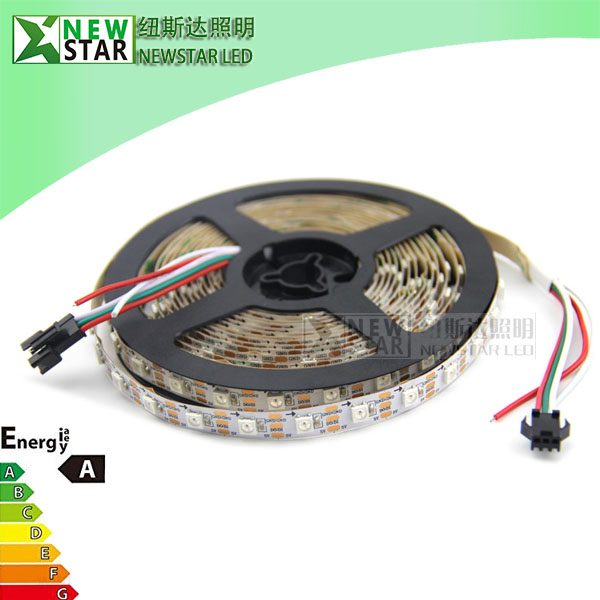

SK6812 RGB Pixel Digital LED Strip Lights
LED Type: RGB 5050SMD chip with Built-in IC
Waterproof: IP20 Non-waterproof, IP65 Silicon, IP67 silicon tube
LED Quantity: 30/60/72/144leds per meter
Pixel: 30/60/72/144 pcs per meter
Working Input Voltage: 5VDC
Drive Mode:Contant Voltage
- Description
- Inquiry
SK6812 RGB Pixel Digital LED Strip Lights,
1, Top SMD internal integrated high quality external control line serial cascade constant current IC;
2, Control circuit and the chip in SMD 5050 components, to form a complete control of pixel, color mixing uniformity and consistency;
3, Built-in data shaping circuit;
4, Gray level adjusting circuit (256 level gray scale adjustable);
5, Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per second;
6, The transmission distance between two points over 10M;
7, 5 meter per roll,Cut-able of each single LED/Pixel;
——————————————————————————————————————————————
30LEDs/m SK6812 RGB Pixel Digital LED Strip Lights Parameters
OPTICAL PARAMETERBASIC PARAMETER
Model No.: NS-6812S30-5V,  LED Q’ty: 30LEDs/m, Pixels: 30/m , Gray Scale:256
Power/m: 9W,   Input voltage: DC5V,   Max current/LED: 60Ma,    Warranty: 3years,
Illumination Angle: 120° ,  Working temperature: -20℃~+45℃, Working hour: 30000h
Energy grade: A,   SMD LED spacing: 33.08mm,  CRI(Ra): >80Ra, PCB: White/Black
Minim cuttable length: every LED is cuttable, PCB Width: 10mm
SK6812 is the 5050 with built-in IC chipset, it has the similar datasheet with ws2812b, but lower voltage.
60LEDs/m SK6812 RGB Pixel Digital LED Strip Lights Parameters
OPTICAL PARAMETERBASIC PARAMETER
Model No.: NS-6812S60-5V,  LED Q’ty: 60LEDs/m, Pixels: 60/m , Gray Scale:256
Power/m: 18W,   Input voltage: DC5V,   Max current/LED: 60Ma,    Warranty: 3years,
Illumination Angle: 120° ,  Working temperature: -20℃~+45℃, Working hour: 30000h
Energy grade: A,   SMD LED spacing: 16.54mm,  CRI(Ra): >80Ra, PCB: White/Black
Minim cuttable length: every LED is cuttable, PCB Width: 10mm
SK6812 is the 5050 with built-in IC chipset, it has the similar datasheet with ws2812b, but lower voltage.
72LEDs/m SK6812 RGB Pixel Digital LED Strip Lights Parameters
OPTICAL PARAMETERBASIC PARAMETER
Model No.: NS-6812S72-5V,  LED Q’ty: 72LEDs/m, Pixels: 72/m , Gray Scale:256
Power/m: 21.6W,   Input voltage: DC5V,   Max current/LED: 60Ma,    Warranty: 3years,
Illumination Angle: 120° ,  Working temperature: -20℃~+45℃, Working hour: 30000h
Energy grade: A,   SMD LED spacing: 13.78mm,  CRI(Ra): >80Ra, PCB: White/Black
Minim cuttable length: every LED is cuttable, PCB Width: 12mm
SK6812 is the 5050 with built-in IC chipset, it has the similar datasheet with ws2812b, but lower voltage.
94LEDs/m SK6812 RGB Pixel Digital LED Strip Lights Parameters
OPTICAL PARAMETERBASIC PARAMETER
Model No.: NS-6812S94-5V,  LED Q’ty: 94LEDs/m, Pixels: 94/m , Gray Scale:256
Power/m: 28.2W,   Input voltage: DC5V,   Max current/LED: 60Ma,    Warranty: 3years,
Illumination Angle: 120° ,  Working temperature: -20℃~+45℃, Working hour: 30000h
Energy grade: A,   SMD LED spacing: 10.33mm,  CRI(Ra): >80Ra, PCB: White/Black
Minim cuttable length: every LED is cuttable, PCB Width: 12mm
SK6812 is the 5050 with built-in IC chipset, it has the similar datasheet with ws2812b, but lower voltage.
144LEDs/m SK6812 RGB Pixel Digital LED Strip Lights Parameters
OPTICAL PARAMETERBASIC PARAMETER
Model No.: NS-6812S144-5V,  LED Q’ty: 144LEDs/m, Pixels: 144/m , Gray Scale:256
Power/m: 43.2W,   Input voltage: DC5V,   Max current/LED: 60Ma,    Warranty: 3years,
Illumination Angle: 120° ,  Working temperature: -20℃~+45℃, Working hour: 30000h
Energy grade: A,   SMD LED spacing: 6.9mm,  CRI(Ra): >80Ra, PCB: White/Black
Minim cuttable length: every LED is cuttable, PCB Width: 12mm
SK6812 is the 5050 with built-in IC chipset, it has the similar datasheet with ws2812b, but lower voltage.
