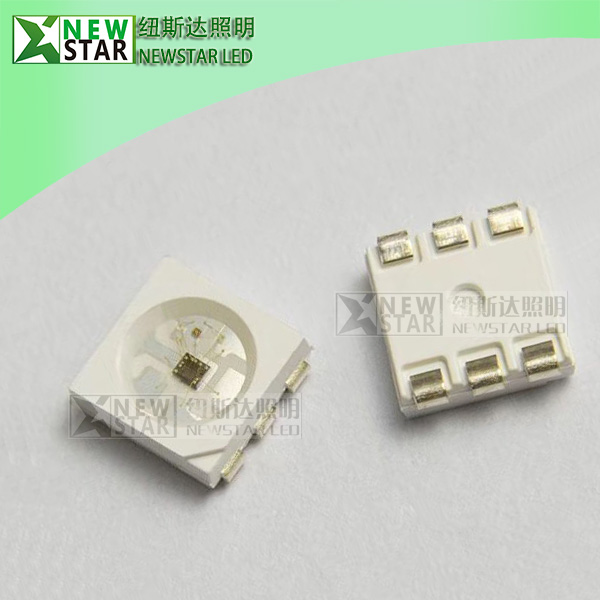

Smart Application APA107 RGB Digital LED Chip 5050 smd
APA107 RGB LED chip is a type ic for the three-color RGB Diming control strip and string ,This ic using the CMOS process to provide three-color RGB LED output driver to adjust the output with 256 gray scale and 32 brightness adjustment,APA107 RGB LED diodes with 2 signal output way, one is clock ,another is data, the clock and data is synchronizated ,so that the crystal cascade piece of output movement is sychronizated.
The APA107 upgrade type NS107S is available, the PWM can be 27kHz, faster and cheaper than APA102.
- Description
- Inquiry
1, Product Description
 APA107 RGB LED Chip is a type ic for the three-color RGB Diming control strip and string ,This ic using the CMOS process to provide three-color RGB LED output driver to adjust the output with 256 gray scale and 32 brightness adjustment, APA107 Pixel diodes with 2 signal output way , one is clock ,another is data, the clock and data is synchronizated, so that the crystal cascade piece of output movement is sychronizated.
Â
2, Feature
-CMOS process,low voltage ,low consumption
-Synchronization of two-lane
-Choose positive output or negative RGB three-color LED output 8 bit(256 level) color set ,5bit(32 level) brightness adjustment Build-20ma constant current output
-With self-detection signal build in support for continuous oscillation PWMoutput ,can be maintained static screen
3, Application
-LED lamp
-LED Strip ,led pixel module
-LED billboard LED screen
4, Electrical Characteristics
More details, please check our datasheets.
