SMD2835 S Shape 90RA LED Strips

90RA SMD3014 60leds 84leds 120leds 156leds Side View LED Strips

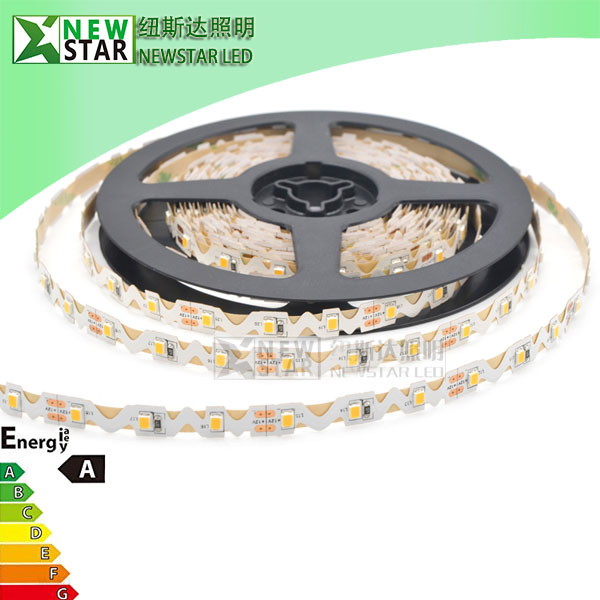

2835smd S shape 90RA led strip lights-1

SMD2835 S Shape 90RA LED Strips

Newstar’s 2835SMD Foldable 90RA Bendable S Shape PCB flexible LED strip lights.There are 2 types PCB width can choose:6mm and 8mm width S Shape. The unique zigzag pattern allows bendable LED Strip reach 90° maximum bending angle to make bends,curves and form shapes you’d never imagine with traditional flexible LED Strips.

Categories: , ,
  • Description
  • Inquiry

60LEDs/m SMD2835 90RA S shape LED Strip Lights Parameters

Technical Parameters

Product Name: 90RA High CRI 60Leds/M SMD2835 S shape Led Strip Lights
Model No: NSS-2835-60S
Led Type: SMD2835
Led Quantity: 60Leds/M
Lumen/Meter: 775-895lm/Meter
Actual Power(w/m): 11W/Meter
Voltage: DC24V(DC12V available)
CRI(Ra): >90
PCB Width: 8mm
Cuttable size: 100mm/24V
Color: Warm white/Natural white/Cool white
CCT(K): 2700K~6000K
IP Grade: IP65/IP67/IP68
Beam Angle: 120°
Ambient Temperature: -25℃ ~ +45℃
Warranty: 5-year or 30000hr whichever comes first
Length: 5Meter/Roll

LED Strip Accessory

90RA High CRI SMD2835 S shape LED Strips Application
1. Architectural decorative lighting
2) Path & contour marking
3) Edge-Lighting of transparent or diffused materials
4) Decorating lighting.
5) Architectural decoration Lighting
6) Backing lighting for under water project
7) Archway/Canopy & Bridge Edge Lighting
8) Amusement park/ Theater/ Aircraft cabin mood lighting
9) Furniture Decoration Lighting
10) Cove lighting
11) Channel letters lighting
12) Stairway Accent lighting
11. Cove lighting
