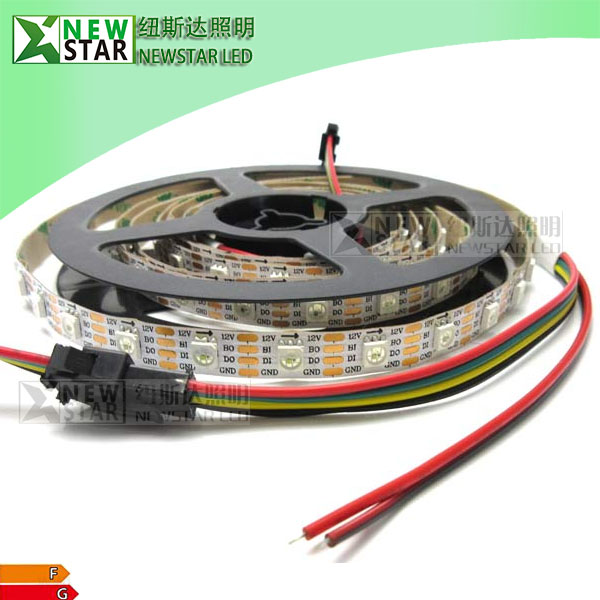

WS2815 DC12V Pixel Digital LED Strips
WS2815 DC12V Pixel Digital LED Strip Lights adopt WS2815 led chip with dual signal to be the DC12V light source,and the capacitance is package in the led chip to be DC12V, so you can see there are no capacitances on the PCB. WS2815 Pixel Digital LED Strip Lights is more practical than another pixel digital led strip lights, as it is DC12V input and one led is broken will not affect another LED Working.
Black/White PCB is available.
30/48/60/72/96/144LEDs options.
We Newstar can also provide more stable type “NS8808 LED Strip”, it is also 12V, much stable than WS2815.
- Description
- Inquiry
Features:
1. WS2815 Pixel Digital LED Strip Lights, breakpoint continue,one led broken will not affect other LED working.
2. One LED chip with one WS2815 IC; Users can cut the ws2815 pixel digital LED strip lights every 1 LEDs.
3. Each LED is individually addressable. DC12V input is the greatest advantage.
4. With 6pin LED lamps for the digital strip.
5. Controller:we usually select SD controller,you also could use DMX controller,DMX decoder,Arduino,Artnet.
——————————————————————————————————————————————
30LEDs/m WS2815 DC12V Pixel Digital LED Strips Parameters
OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-2815S30-12V,  LED Q’ty: 30LEDs/m, Pixels: 30/m , Gray Scale:256
Power/m: 9W,   Input voltage: DC12V,   Max current/LED: 60Ma,    Warranty: 3years,
Illumination Angle: 120° ,  Working temperature: -20℃~+45℃, Working hour: 30000h
Energy grade: A,   SMD LED spacing: 33.08mm,  CRI(Ra): >80Ra, PCB: White/Black
Minim cuttable length: every LED is cuttable, PCB Width: 10mm
WS2815 Pixel digital led strip lights with DC12V input, and have breakpoint continue function, one pixel damaged will not affect the other LEDs working. Dual signal wires version, signal can jump to transfer
60LEDs/m WS2815 DC12V Pixel Digital LED Strips Parameters
OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-2815S60-12V,  LED Q’ty: 60LEDs/m, Pixels: 60/m , Gray Scale:256
Power/m: 18W,   Input voltage: DC12V,   Max current/LED: 60Ma,    Warranty: 3years,
Illumination Angle: 120° ,  Working temperature: -20℃~+45℃, Working hour: 30000h
Energy grade: A,   SMD LED spacing: 16.54mm,  CRI(Ra): >80Ra, PCB: White/Black
Minim cuttable length: every LED is cuttable, PCB Width: 10mm
WS2815 Pixel digital led strip lights with DC12V input, and have breakpoint continue function, one pixel damaged will not affect the other LEDs working. Dual signal wires version, signal can jump to transfer
72LEDs/m WS2815 DC12V Pixel Digital LED Strips Parameters
OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-2815S72-12V,  LED Q’ty: 72LEDs/m, Pixels: 72/m , Gray Scale:256
Power/m: 21.6W,   Input voltage: DC12V,   Max current/LED: 60Ma,    Warranty: 3years,
Illumination Angle: 120° ,  Working temperature: -20℃~+45℃, Working hour: 30000h
Energy grade: A,   SMD LED spacing: 13.78mm,  CRI(Ra): >80Ra, PCB: White/Black
Minim cuttable length: every LED is cuttable, PCB Width: 12mm
WS2815 Pixel digital led strip lights with DC12V input, and have breakpoint continue function, one pixel damaged will not affect the other LEDs working. Dual signal wires version, signal can jump to transfer
144LEDs/m WS2815 DC12V Pixel Digital LED Strips Parameters
OPTICAL PARAMETERBASIC PARAMETER
Model No.: NSS-2815S144-12V,  LED Q’ty: 144LEDs/m, Pixels: 144/m , Gray Scale:256
Power/m: 43.2W,   Input voltage: DC12V,   Max current/LED: 60Ma,    Warranty: 3years,
Illumination Angle: 120° ,  Working temperature: -20℃~+45℃, Working hour: 30000h
Energy grade: A,   SMD LED spacing: 6.9mm,  CRI(Ra): >80Ra, PCB: White/Black
Minim cuttable length: every LED is cuttable, PCB Width: 10mm
WS2815 Pixel digital led strip lights with DC12V input, and have breakpoint continue function, one pixel damaged will not affect the other LEDs working. Dual signal wires version, signal can jump to transfer
DATA SHEET: WS2815 DC12V Pixel digital LED Strip lights
WS2815 DC12V LED Strip Conection Diagram
Below is our NS8808 with external capacitors, more stable.
