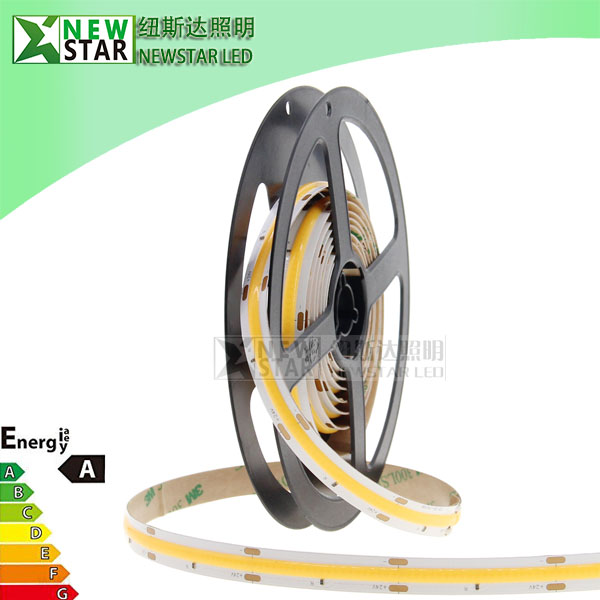

5mm-10mm 12v/24v dotfree flexible COB LED Strips
1. Epistar led chip, 5yrs warranty
2. Color: 2700k, 3000k, 4000k, 6000k , Red, Green, Blue, Yellow.
3. All of Materials Are Accord With CE Rohs Standards.
4. Easy to Install and Preserve;can Be Bent Freely; With 3m Adhesive Tape On the Backside.
5. High Color Efficiency, Uniform Illumination.
6. Beam Angle 180°.
- Description
- Inquiry
240LEDs/m COB Flexible LED Strip Parameters
Technical Parameters
Product Name: 90RAÂ 240leds COB Flexible led strips
Model No: NSS-240-COB
Led Type:Â COB
Led Quantity: 240Leds/M
Lumen/Meter: 420-700lm/Meter
Actual Power(w/m): 6W/Meter
Voltage: DC24V
CRI(Ra): >90
PCB Width: 8mm
Cuttable size: 100mm/24V
Color: Warm white/Natural white/Cool white/R/G/B/Y
CCT(K): 2500K/2700K/3000K/4000K/5000K/6000K
IP Grade: IP20/IP65/IP67/IP68
Beam Angle: 120°
Ambient Temperature: -25℃ ~ +45℃
Warranty: 5-year or 30000hr whichever comes first
Length: 5Meter/Roll

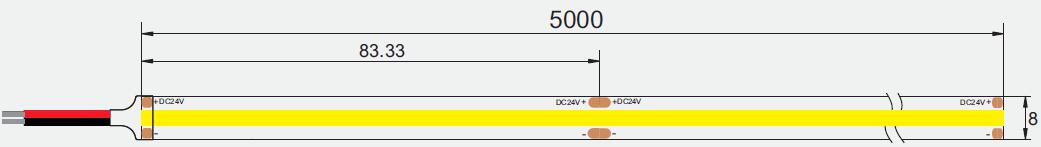

8mm PCB 384LEDs/m COB Flexible LED Strip Parameters
Technical Parameters
Product Name: 90RAÂ 384leds 8MM COB Flexible led strips
Model No: NSS-384-COB
Led Type:Â COB
Led Quantity: 384Leds/M
Lumen/Meter: 720-960lm/Meter
Actual Power(w/m): 8W/Meter
Voltage: DC24V
CRI(Ra): >90
PCB Width: 8mm
Cuttable size: 83.33mm/24V
Color: Warm white/Natural white/Cool white/R/G/B/Y
CCT(K): 2500K/2700K/3000K/4000K/5000K/6000K
IP Grade: IP20/IP65/IP67/IP68
Beam Angle: 120°
Ambient Temperature: -25℃ ~ +45℃
Warranty: 5-year or 30000hr whichever comes first
Length: 5Meter/Roll

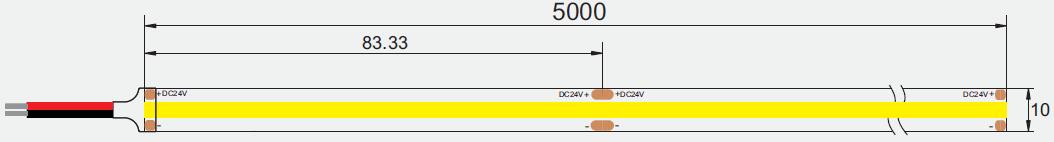

10mm PCB 384LEDs/m COB Flexible LED Strip ParametersÂ
Technical Parameters
Product Name: 90RAÂ 384leds 10MM COB Flexible led strips
Model No: NSS-384-COB
Led Type:Â COB
Led Quantity: 384Leds/M
Lumen/Meter: 1080-1440lm/Meter
Actual Power(w/m): 12W/Meter
Voltage: DC24V
CRI(Ra): >90
PCB Width: 10mm
Cuttable size: 83.33mm/24V
Color: Warm white/Natural white/Cool white/R/G/B/Y
CCT(K): 2500K/2700K/3000K/4000K/5000K/6000K
IP Grade: IP20/IP65/IP67/IP68
Beam Angle: 120°
Ambient Temperature: -25℃ ~ +45℃
Warranty: 5-year or 30000hr whichever comes first
Length: 5Meter/Roll

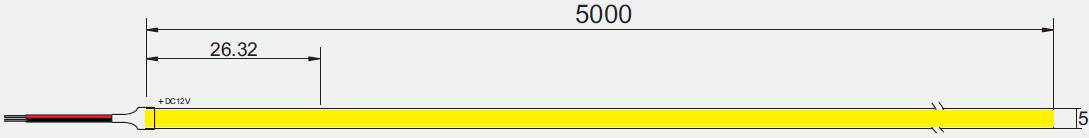

5mm PCB 456LEDs/m COB Flexible LED Strip Parameters
Technical Parameters
Product Name: 90RAÂ 456leds 5MM COB Flexible led strips
Model No: NSS-456-COB
Led Type:Â COB
Led Quantity: 456Leds/M
Lumen/Meter: 560-700lm/Meter
Actual Power(w/m): 7W/Meter
Voltage: DC24V
CRI(Ra): >90
PCB Width: 5mm
Cuttable size: 83.33mm/24V
Color: Warm white/Natural white/Cool white/R/G/B/Y
CCT(K): 2500K/2700K/3000K/4000K/5000K/6000K
IP Grade: IP20/IP65/IP67/IP68
Beam Angle: 120°
Ambient Temperature: -25℃ ~ +45℃
Warranty: 5-year or 30000hr whichever comes first
Length: 5Meter/Roll

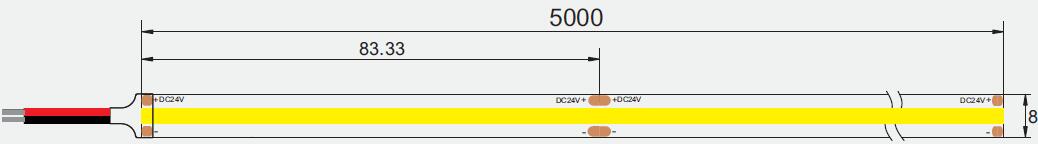

8mm PCB 456LEDs/m COB Flexible LED Strip Parameters
Â
Technical Parameters
Product Name: 90RAÂ 456leds 8MM COB Flexible led strips
Model No: NSS-456-COB
Led Type:Â COB
Led Quantity: 456Leds/M
Lumen/Meter: 800-1000lm/Meter
Actual Power(w/m): 10W/Meter
Voltage: DC24V
CRI(Ra): >90
PCB Width: 8mm
Cuttable size: 83.33mm/24V
Color: Warm white/Natural white/Cool white/R/G/B/Y
CCT(K): 2500K/2700K/3000K/4000K/5000K/6000K
IP Grade: IP20/IP65/IP67/IP68
Beam Angle: 120°
Ambient Temperature: -25℃ ~ +45℃
Warranty: 5-year or 30000hr whichever comes first
Length: 5Meter/Roll

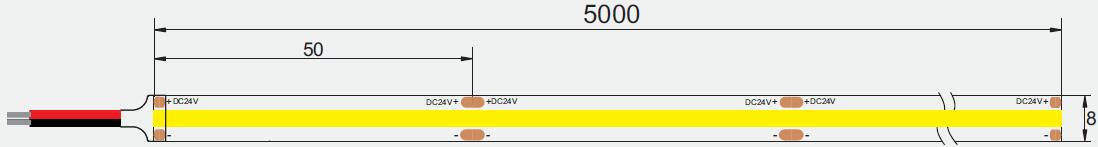

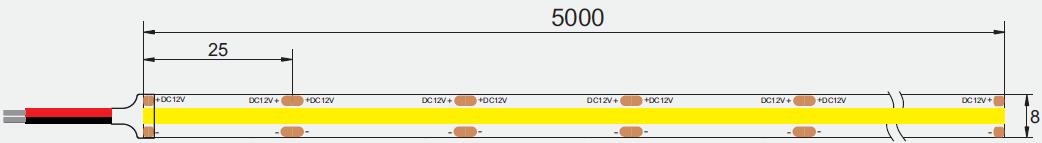

8mm PCB 480LEDs/m COB Flexible LED Strip Parameters
Technical Parameters
Product Name: 90RAÂ 480leds 8MM COB Flexible led strips
Model No: NSS-480-COB
Led Type:Â COB
Led Quantity: 480Leds/M
Lumen/Meter: 800-1000lm/Meter
Actual Power(w/m): 10W/Meter
Voltage: DC12V/DC24V
CRI(Ra): >90
PCB Width: 8mm
Cuttable size: 25mm/12V, 50mm/24V
Color: Warm white/Natural white/Cool white/R/G/B/Y
CCT(K): 2500K/2700K/3000K/4000K/5000K/6000K
IP Grade: IP20/IP65/IP67/IP68
Beam Angle: 120°
Ambient Temperature: -25℃ ~ +45℃
Warranty: 5-year or 30000hr whichever comes first
Length: 5Meter/Roll

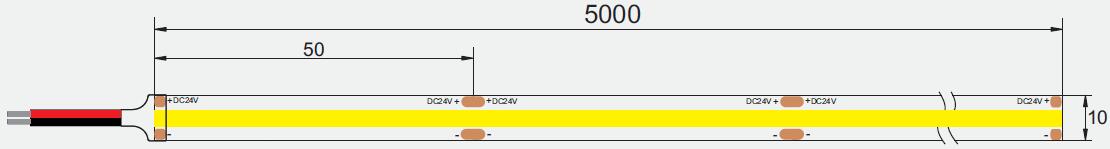

10mm PCB 480LEDs/m COB Flexible LED Strip Parameters
Â
Technical Parameters
Product Name: 90RAÂ 480leds 10MM COB Flexible led strips
Model No: NSS-480-COB
Led Type:Â COB
Led Quantity: 480Leds/M
Lumen/Meter: 900-1200lm/Meter
Actual Power(w/m): 12W/Meter
Voltage:Â DC24V
CRI(Ra): >90
PCB Width: 10mm
Cuttable size: 50mm/24V
Color: Warm white/Natural white/Cool white/R/G/B/Y
CCT(K): 2500K/2700K/3000K/4000K/5000K/6000K
IP Grade: IP20/IP65/IP67/IP68
Beam Angle: 120°
Ambient Temperature: -25℃ ~ +45℃
Warranty: 5-year or 30000hr whichever comes first
Length: 5Meter/Roll

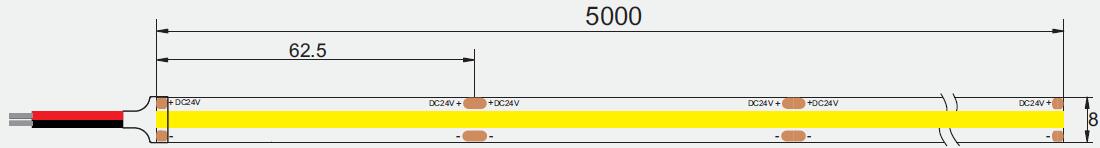

8mm PCB 512LEDs/m COB Flexible LED Strip Parameters
Â
Technical Parameters
Product Name: 90RAÂ 512leds 8MM COB Flexible led strips
Model No: NSS-512-COB
Led Type:Â COB
Led Quantity: 512Leds/M
Lumen/Meter: 900-1200lm/Meter
Actual Power(w/m): 10W/Meter
Voltage: DC24V
CRI(Ra): >90
PCB Width: 8mm
Cuttable size: 62.5mm/24V
Color: Warm white/Natural white/Cool white/R/G/B/Y
CCT(K): 2500K/2700K/3000K/4000K/5000K/6000K
IP Grade: IP20/IP65/IP67/IP68
Beam Angle: 120°
Ambient Temperature: -25℃ ~ +45℃
Warranty: 5-year or 30000hr whichever comes first
Length: 5Meter/Roll

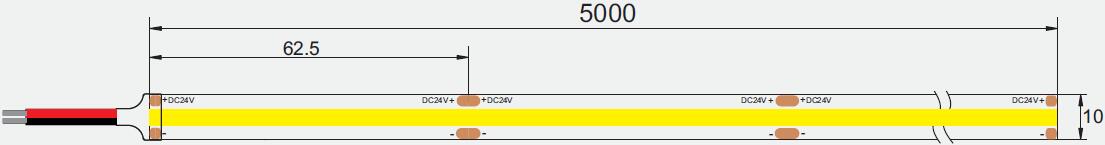

10mm PCB 512LEDs/m COB Flexible LED Strip Parameters
Â
Technical Parameters
Product Name: 90RAÂ 512leds 10MM COB Flexible led strips
Model No: NSS-512-COB
Led Type:Â COB
Led Quantity: 512Leds/M
Lumen/Meter: 1260-1480lm/Meter
Actual Power(w/m): 14W/Meter
Voltage: DC24V
CRI(Ra): >90
PCB Width: 10mm
Cuttable size: 62.5mm/24V
Color: Warm white/Natural white/Cool white/R/G/B/Y
CCT(K): 2500K/2700K/3000K/4000K/5000K/6000K
IP Grade: IP20/IP65/IP67/IP68
Beam Angle: 120°
Ambient Temperature: -25℃ ~ +45℃
Warranty: 5-year or 30000hr whichever comes first
Length: 5Meter/Roll

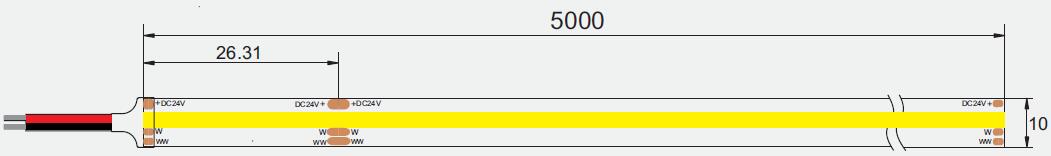

10mm PCB 608LEDs/m Double White COB Flexible LED Strip Parameters
Â
Technical Parameters
Product Name: 90RAÂ 608leds 10MM Double white CCT adjustable COB Flexible led strips
Model No: NSS-608CCT-COB
Led Type:Â COB
Led Quantity: 608Leds/M
Lumen/Meter: 1150-2500lm/Meter
Actual Power(w/m): 12W+12W/Meter
Voltage: DC24V
CRI(Ra): >90
PCB Width: 10mm
Cuttable size: 26.31mm/24V
Color: Warm white+Cool white
CCT(K):Â 3000K+6000K CCT adjustable from 3000k to 6000k
IP Grade: IP20/IP65/IP67/IP68
Beam Angle: 120°
Ambient Temperature: -25℃ ~ +45℃
Warranty: 5-year or 30000hr whichever comes first
Length: 5Meter/Roll
