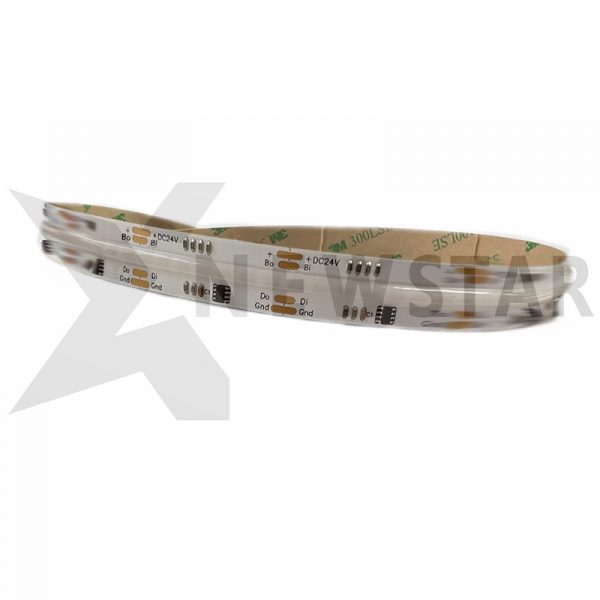

DC24V WS2818 Pixel RGB RGBW COB LED Tape lights 720leds two data transmission
DC24V
720leds COB type
23W/m for White/RGB mixed
WS2818 two data transmission
If one pixel go out, the Fail Data takes over and the rest of the strip is still on
- Description
- Inquiry
Pixel COB LED Tape Spec:Â
| Model | NSS-2818COBS720-24V |
| Light Source | 720leds COB RGB LED |
| Power | 23w/m |
| IC Type | WS2818, back up data signal |
| Input Voltage(V) | DC24V |
| PCB Color | Black/White, 12mm |
| Cuttable | 50mm |
| Certification | CE & RoHS |
| Working Temperature | -30-60°C |
| CRI (Ra) | >80Ra |
| IP Grade | IP20/IP65/IP67/IP68 |
| Color | RGB |
| Warranty | 3Â years |
Pixel COB LED Tape main advantage:
1. Bigger size LED Chip 0.5w/pc to ensure a longer lifespan.
2. No worries about getting moisture even you keep it in stock for a long time thanks to the special craft.
3. The phosphor is surrounding the LED Chip instead of on it, so no worries on light decay.
4. LED Chip mounted on PCB by Solder paste directly, which is much better on heat dissipation.
5. 180d beam angle and higher density are more suitable for Pixel lighting design

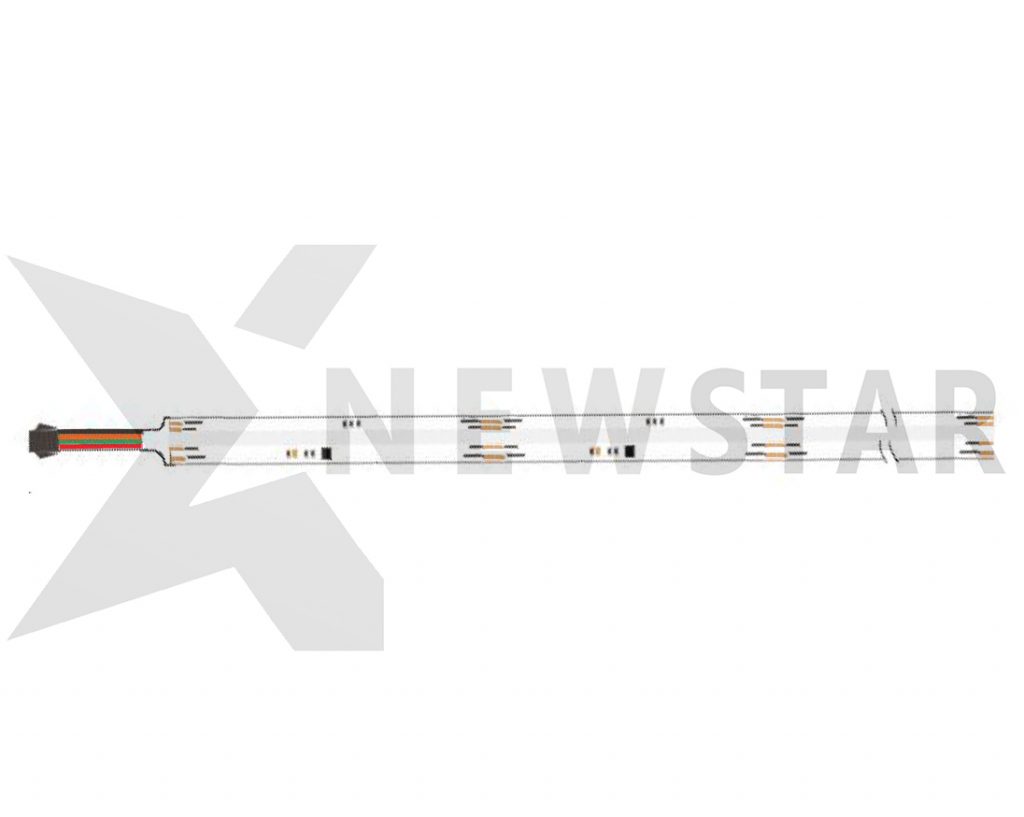

720leds 24VÂ Pixel COBÂ LED Tape 12mm PCB
