Smart NS107S 3535 RGB Pixel Addressable LED Chip
NS107S 3535 Pixel LED Chip, the refresh frequency reaches to 27KHz
- Description
- Inquiry
PWM refresh rate: 27kHz, Oscillator frequency: 40Mhz
1, Product Description
NS107S 3535 RGB LED Chip is a type ic for the three-color RGB Diming control strip and string ,This ic using the CMOS process to provide three-color RGB LED output driver to adjust the output with 256 gray scale and 32 brightness adjustment, NS107S Pixel diodes with 2 signal output way , one is clock ,another is data, the clock and data is synchronizated, so that the crystal cascade piece of output movement is sychronizated.
2, Feature
-CMOS process,low voltage ,low consumption
-Synchronization of two-lane
-Choose positive output or negative RGB three-color LED output 8 bit(256 level) color set ,5bit(32 level) brightness adjustment Build-20ma constant current output
-The gray levels of each pixel are of 256 levels, which achieves “256*256*256=16777216” full-color display, and the refresh frequency reaches to 27KHz.
-With self-detection signal build in support for continuous oscillation PWMoutput ,can be maintained static screen
3, Application
-LED lamp
-LED Strip ,led pixel module
-LED billboard LED screen

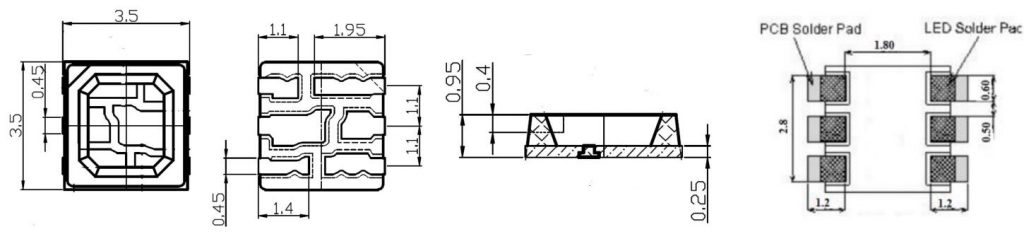

4, Mechanical Dimensions

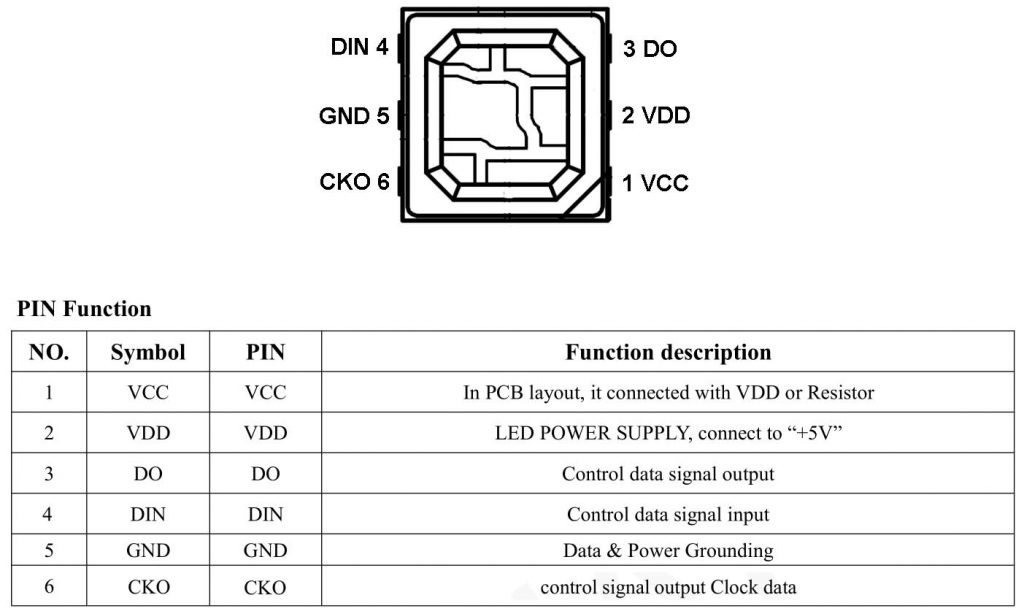

5, PIN Configuration
More details, please check our datasheets.
