This is a new COB dotted LED strips provided by Newstar. It not only has all the advantages of conventional LED strip light but also has its unique advantages.
If you are interested in this product, please continue to check the detailed parameters below.
240leds/m just higher $0.2/m than 160leds/m.
What is a dotted COB led strip light?
The dotted COB led strip is a new led strip light made by COB encapsulation,
It is to cure the LED light-emitting chip directly on the flexible FPC board, and then directly cover the wick with fluorescent glue.
This kind of COB light strip eliminates many steps in the traditional LED light strip manufacturing process, and also reduces the defective rate of light strips that may be caused by each production link.
After the chip and the board are integrated, it has better electrical conductivity and higher photoelectric conversion efficiency.
The better heat dissipation performance of the light-emitting chip greatly increases the service life of the light strip.
The full fluorescent gel cover makes the light emitted by the lamp belt softer and more comfortable.
In addition to the above advantages, the dotted COB light strip has another advantage, that is: compared with the traditional light strip, it has a very high-cost performance. Dotted COB light strips with the same power and same brightness will have a lower price than traditional led light strips.
Dimension:
Product Specification
| Product Name | COB Dotted LED Strips |
| Model | NSS-COB-160D |
| LED Light Source | LED Chip with COB Package |
| LED QTY/M | 160LEDs |
| PCB Thickness | 2oz |
| PCB Color | White |
| Tape | 3M adhesive tape |
| Length per reel | 16.4′ (5M) or 32.8′(10M) |
| Standard Connector | 20AWG red/black cable on the end |
| Length of Cuttable | 12V-25 mm/24V-50mm |
| PCB width | 8mm |
| LED Strip Dimension | 8mm (Width) *1.3mm(Height) *Length |
| Length | 5000mm (16.4ft) per roll |
| Length of Connection Cable | 150mm length |
Electrical Parameters
| Model | NSS-COB-160D |
| Color | 2500K, 3000K, 4000K, 5000K,6000K,Red,Green,Blue |
| Input Voltage | DC12V/24V |
| Ra | >80 |
| LED Beam Angle | 180° |
| Lumen Output/M | 1000 / 1120 / 1240 / 1240 / 1160 |
| Work Temperature | -20~60° |
| Working Humidity | 40%-70%RH |
| Working Lifetime | 50,000+ hours |
| Power | 10W |
| Warranty | 5 years |

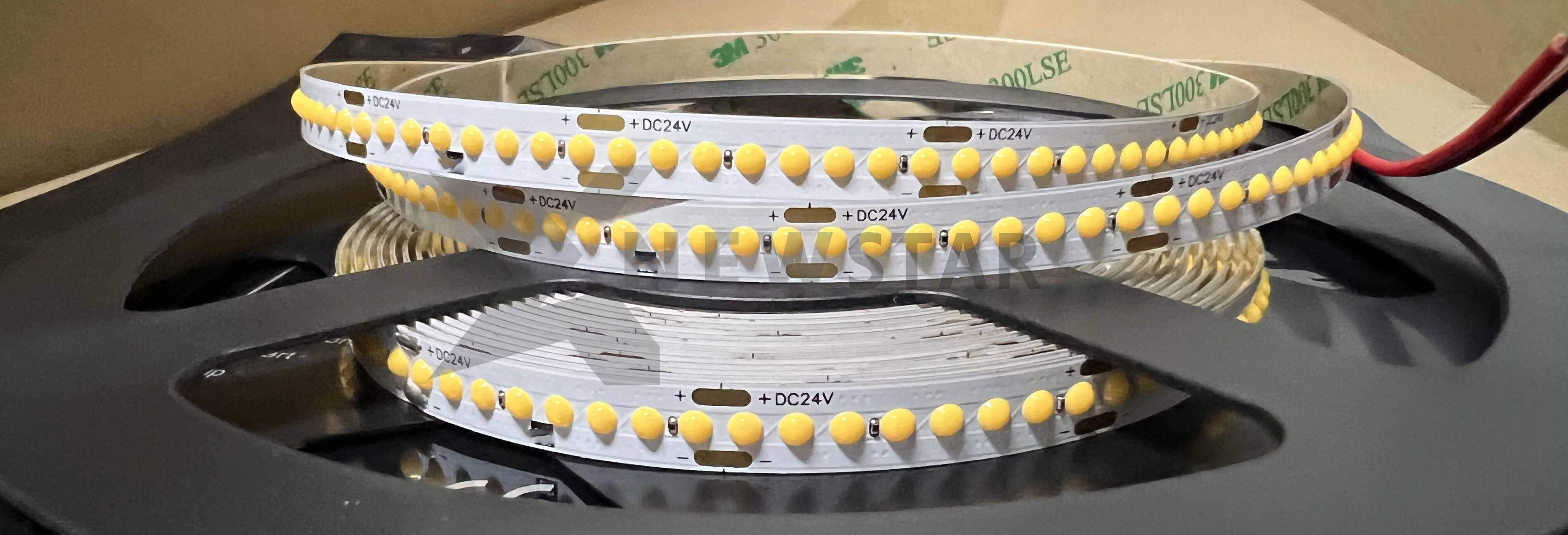

Product Photo:
The picture below is a comparison of the appearance with conventional 3528 LED light strips. The difference between them can be seen from the picture.
If you are interested in this product, please click the button below to leave a message, we will reply to you as soon as possible!
More leds with more competitive price.
