Addressable WS2818 LED Tape strips with data back up DC5V DC12V 30LEDS 60LEDS
- Description
- Inquiry
WS2818 is the upgrade of ws2811, but has break-point transmission function, or we can say it is ws2813/ws2815 ICÂ put in a DFN8 package
1. 5V/12V available, that work on different applications of stable pressure.
2. Built-in 12V voltage regulator tube, only add a resistance to IC VDD pin when the voltage is below 12V.
3. Adopts the built-in signal reshaping circuit to achieve the signal waveform shaping, and thus no signal waveform distortion takes place.
4. Built-in power-on reset and brown-out reset circuits.
5. The gray levels of each pixel of 256 levels, and the refresh frequency reaches to 2KHz/s.
6. Serial cascading interface, data receiving and decoding are all achieved by one signal line.
7. Signal Break-point Continuous Transmission, any pixel’s failure, it won’t affect the whole display effect.
8. The distance of any two signal transmission points is less than 5 meters, there’s no extra circuits needed.
9. When the refresh rate of 30fps, the cascade number are not less than 1024 pixels.
10. Send data at speeds of 800Kbps.
11. Good consistency reliability, high cost-effective.

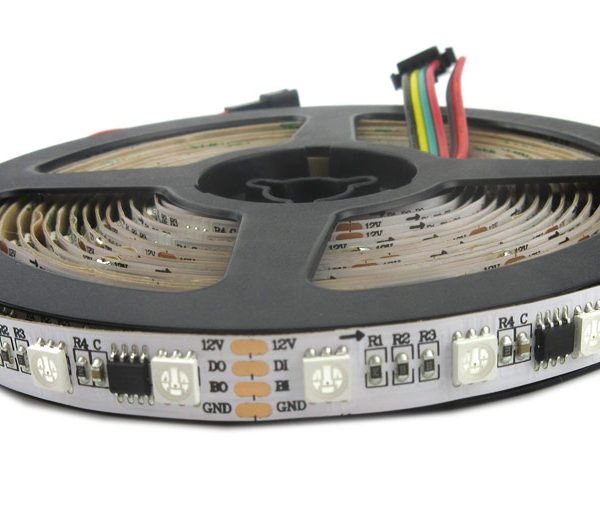

12v 30leds 60 leds/m Black /white PCB WS2818Â LED Tape
Model number | NSS-2818S60-12V | ||
 IC TYPEE | WS2818 | ||
PCB color | white/black PCB | Â | Â |
PCB Width | 10mm | Â | Â |
View angle | 120 degree | ||
Function | Break-point transmission | ||
POWER | 14.4W/M | ||
Voltage | DC12V | ||
Installation | wiht 3M adhesive back ,easy for installation | ||
IP rate | IP20(non -waterproof /IP65(Silicon tube  waterproof ) | ||
Package | 5M/reel .with anti-static bag  ,or customized |
Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees
testing time | light fades rate |
500H | 0% |
1000H | 0% |
2000H | 0.5% |
4000H | 1.2% |
6000H | 2% |
Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters
Application
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
