We Newstar focuses on high efficiency LED strips and therefore complies with the European ErP EcoDesign regulation. With the high efficiency LED strips series the demands of the legislator are met, ensuring environmentally friendly LED lighting strips.
Main features:
A. Up to 219 lm/W for a high degree of efficiency.
B. 8 led/per cutting unit;
C. 128 led/m to ensure continuous light without dots;
D. 10m length no brightness dropped to keep high light efficiency at the same time.

Basic Parameters

• LED Type： 2835 SMD
• SDCM： 3 SDCM 1 BIN
• LED Qty： 128 LEDs/m
• Copper Foil： 3oz
• Cutting Unit： 8LEDs/62.5mm
• Beam Angle： 120°
• Dimension： 5000*10*2.1mm
• Bend Diameter： ＞60mm
• Input Voltage： DC24V
• Color： White light
• Typ.Power： 9.6W/m & 18.96W/5m
• CRI： >80 / >90 / >95
• Input Current： 0.37A/1m & 0.79A/5m
• IP Rate： IP20 / IP65 / IP66
• Power Option： 8.2~19.2W/m
• Energy Efficiency Class： A

Length: 10M(32.8′)/roll

Cutting Unit: 8LEDs/62.5mm(2.460′′)

LED Spacing: 7.8mm(0.307′′)

LED Height: 2.1mm(0.082′′)

Mounting: 3M tape

Min. Bend Diameter: Φ60mm(2.362′′)

Copper foil: 3oz

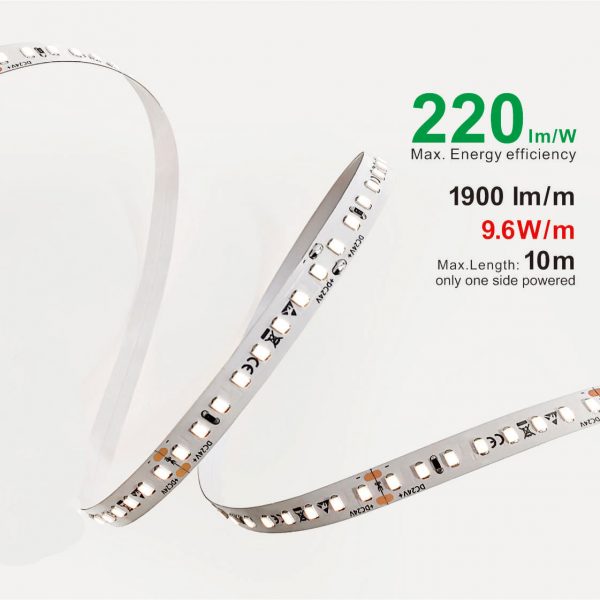

Product Picture

Accessories

• Controller, Used for LED light strip brightness adjustment
• Power Supply, Input: 100~240V, Output: 12~24V, Rated current: 12V20A, 24V10A,
• Aluminum Profile, Profiles color: Silver or Black,PC Cover: Clear or Milky or Frosted
