• RGB LED Strip with 30° degree lens, with much better color consistency;Light emitting distance 1.5m~2m based on 5050SMD 0.2W/pcs RGB LEDs, smaller sizes than the normal LED Wall Washer.
• Mostly used as Cabinet light,curtain light etc…

Basic Parameters

• LED Type： 5050 SMD
• Color： RGB
• LED Qty： 60 LEDs/m
• Copper Foil： 3oz
• Cutting Unit： 6LEDs/100mm
• Beam Angle： 30°
• Dimension： 5000*10*5.7mm
• Bend Diameter： ＞60mm
• Input Voltage： DC12/24V
• IP Rating： IP20
• Typ.Power： 14W/m & 59W/5m
• CRI： –
• Input Current： 0.58A/1m & 2.46A/5m
• Operating humidity： 40%-70%RH
• Power Option： 7.2 / 10.8W/m
• Operating temperature： Ta: -25~40°C,Tc:75°C(max)

Length: 5M(16.4′)/roll

Cutting Unit: 6LEDs/100mm(3.937′′)

LED Spacing: 16.66mm(0.655′′)

LED Height: 5.7mm(0.224′′)

Min. Bend Diameter: Φ60mm(2.362′′)

Mounting: 3M tape

IP Rate: IP20

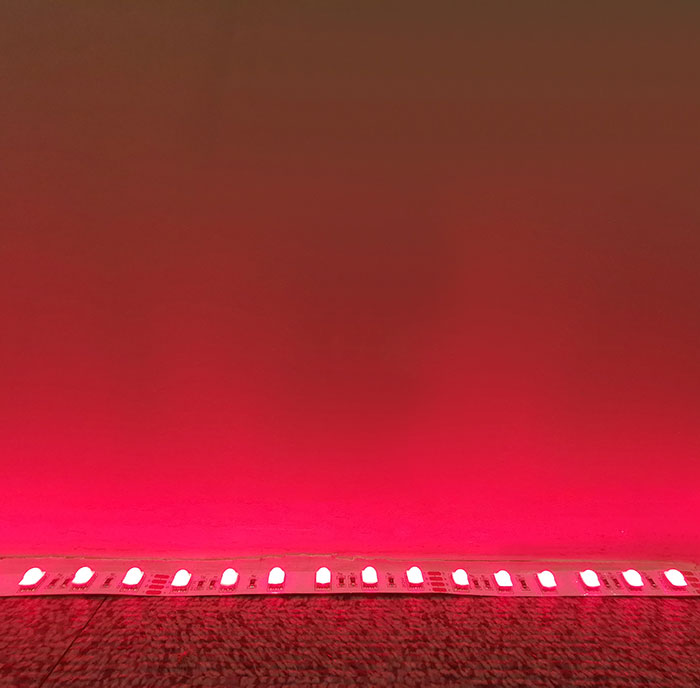

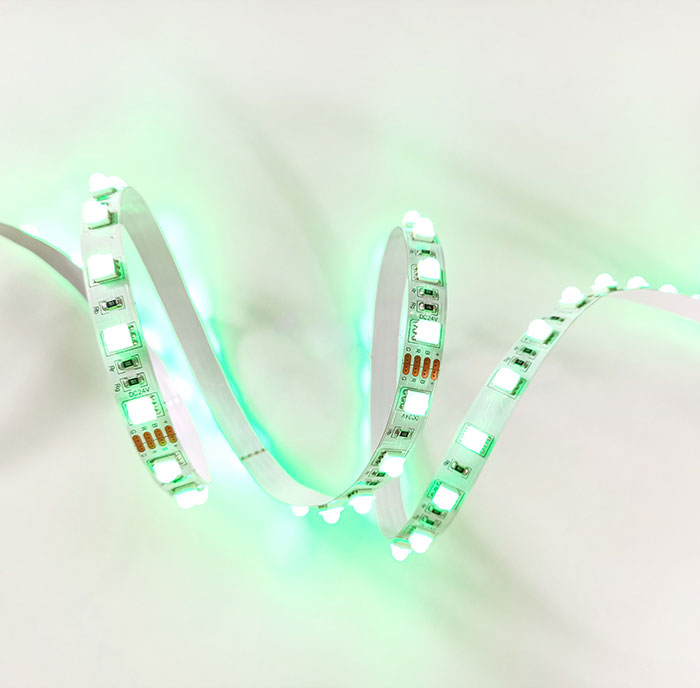

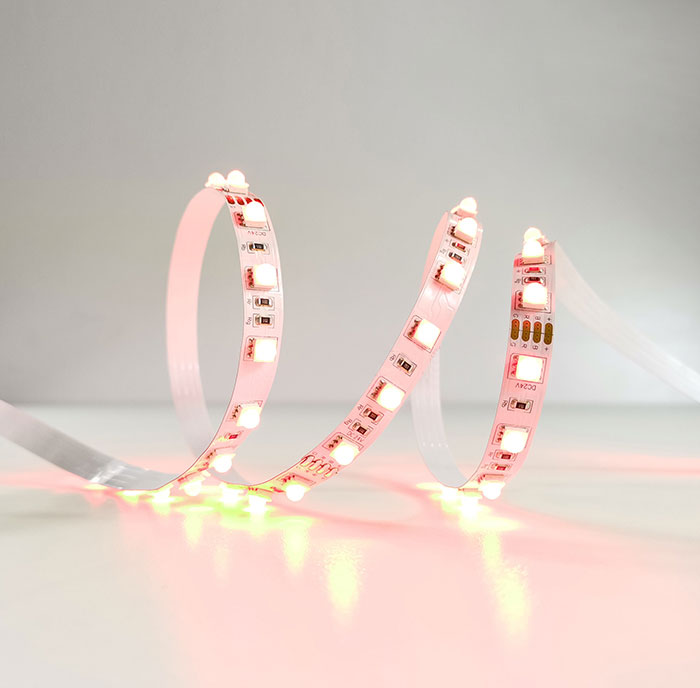

Product Picture
