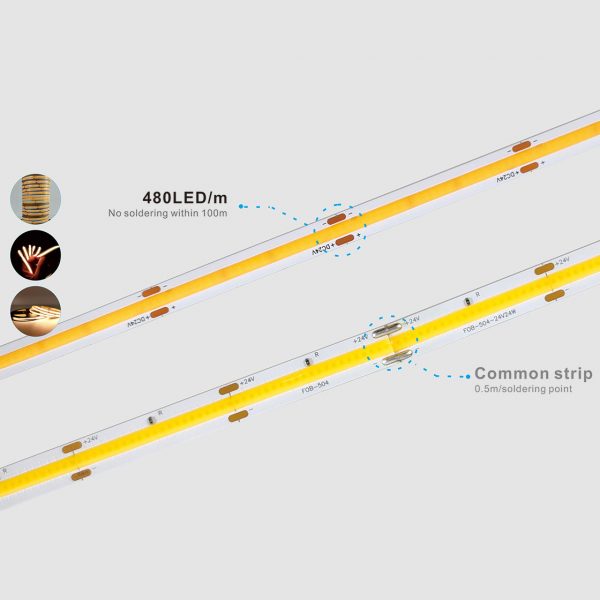

• 100m Without soldering point .Mini Cutting COB strip is a high-density led lighting strip made by COB encapsulation, which can reduce the thermal resistance of the high-density strip circuit system, greatly improves the life of the LED, and the light flux density is high, the glare is small, and the light is uniform and there is no dark area.
• Mono white, CCT, Red, Green, Blue color are available. 180° view angle high color efficiency.
• The lowest profile COB linear lighting without the need for additional diffused covers or accessories. Perfect for areas with low clearance or reflective surfaces to eliminate spot-glare.

Basic Parameters

• LED Type： COB
• SDCM： –
• LED Qty： 480 LEDs/m
• Copper Foil： 2oz
• Cutting Unit： 50mm
• Beam Angle： 180°
• Dimension： 100000*8*1.2mm
• Bend Diameter： ＞60mm
• Input Voltage： DC24V
• Color： White / R / G / B
• Typ.Power： 9.6W/m & 8.9W/5m
• CRI： >90
• Input Current： 0.4A/1m & 1.7A/5m
• IP Rate： IP20 / IP65 / IP67
• Power Option： –
• Energy Efficiency Class： E

Length: 5M(16.4′)/roll

Cutting Unit: 50mm(1.968′′)

LED Height: 1.2mm(0.047′′)

Mounting: 3M tape

Min. Bend Diameter: Φ60mm(2.362′′)

IP Rate: IP20 / IP65 / IP67

Product Picture

Accessories

• Controller, Used for LED light strip brightness adjustment
• Power Supply, Input: 100~240V, Output: 12~24V, Rated current: 12V20A, 24V10A,
• Aluminum Profile, Profiles color: Silver or Black,PC Cover: Clear or Milky or Frosted
