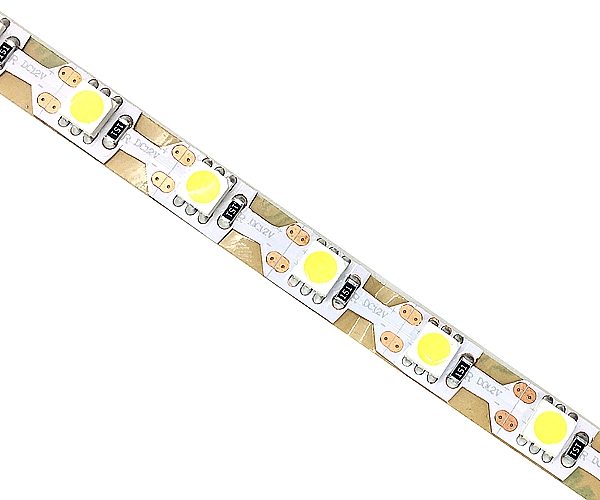

Customzied bendable Foldable 5050 2835 3528smd 90RA LED sign strip lights with special shape

DMX512 Flexible Silicone Neonflex LED strip WS2811 WS2812 WS2813 WS2815 SK6812 APA102 APA107 HD107S HD108 RGB RGBW neonflex
Customized 12v 24v LED Neon Flex strip Silicone IP67
Customzied bendable Foldable 5050 2835 3528smd 90RA LED sign strip lights with special shape

Customzied bendable Foldable 5050 2835 3528smd 90RA LED sign strip lights with special shape

Categories: , ,
  • Description
  • Inquiry
:::Electrical Parameter:::
LED QTY60LED/M
Color/CCT2200K-6500K
Bin/Step3 Step MacAdamEllipse, 1bin only
ChipEPISTAR
CRIRa+90
Luminous flux1200Lm/M
Max power14.4W/M
VoltageDC 12V Input
Current1.2 A/M
Cut length1 LED/17mm
PCB Width10mm/3oz/ WHT
Connection2*20AWG / RED’+’/ BLK’-‘
Packing Carton box
Installation55280 3M tape
Max run length5meters
Lifespan & warranty50,000Hrs /5years
DimmableYes
Beam Angle120°
CertificateCE, RoHS, UL

Features

1. Length per roll: 5m/ 16.4ft;
2. Cuttable and re-connectable for every 1 LED;
3. Connection possible at the reel end or at the marked cut points;
4. Available CCT: (3 Step MacAdamEllipse, 1bin only)
*+/-50K or +/-75K CCT range for Warm White and Nature White;
 *+/-100K or +/-150K for Cool White;
5. CRI>80+RA / 85+RA/ 90+RA/ 95+RA for excellent efficiency and color consistence;
6. Epistar brand LEDs;
7. Advanced thermal control and low heat generation, 2-5Oz double sided thick copper PCB;
8. Gold bonding wire, copper lead frame;
9. UL Listed Cables: 18/20 AWG;
10. Various IP Ratings available for any indoor or outdoor lighting;
11. Easy and flexible installation with 3M adhesive backing: 55280 3M Tape or VHB 5952 3M permanent bonding adhesive tape;
12. Aluminum profiles, power supplies, controller and other accessories available;
13. Dimmable;
14. UL, RoHS, CE, FCC listed.
Application
Indoor & outdoor liner projects
Architectural displays / sides of buildings
Patio and barbecue areas
Accent lighting locations
Under cars and motorcycles
Shop display lighting
Back yard arbors and gazebos
Under cabinet lighting
Outside in signs and under rooftops
Above cabinet lighting
Under counter lighting
Hotel lobbies
Cove lighting
