DMX Control RGB LED Panel 12V-24V RGBW customized
- Description
- Inquiry
DESCRIPTION:
DMX LED Panel Light
1. Ultra wide voltage input(DC:12-24V), adopt high brightness
2. LED chips, SMD RGB 5050,
3. 1 led/pixel, 1 panel/pixel which realize manifestation and visual impact
4. Standard DMX 512 control, 44frames/second, manual or auto-addressing customized
5. 2D pixel mapping to set on the software programming
6. Protections: short circuit, over current , over temperature .
7. With working life-span at least 50,000hrs;
8. Fast get through input/output signal;
9. Support adjustable color temperature within 2,500k-10,000k ;

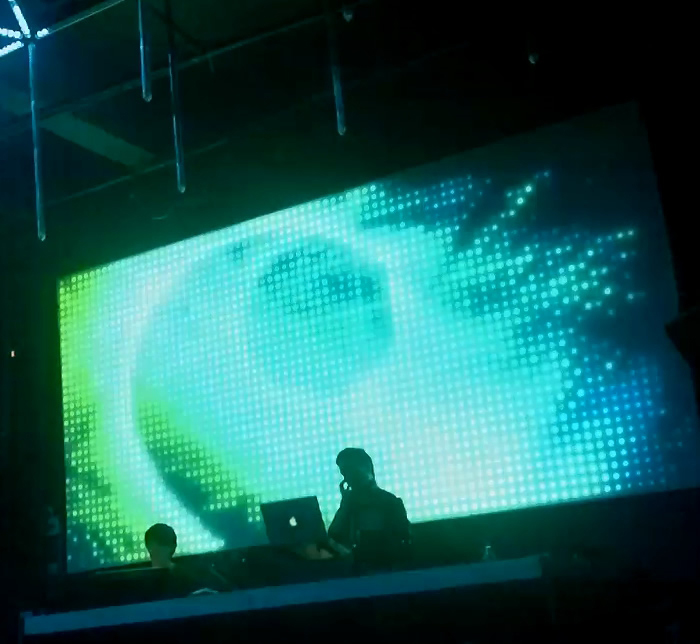

Application: adapted for all kinds of installation methods including, stage background, lighting background, video display, club and bar lightin
Model NO. | NSS-P150DMX3636 | NSS-P150DMX3601 | NSS-P250DMX1616 | NSS-P300DMX1616 |
LED type and QTY | 36 pcs SMD RGB 5050 | 36 pcs SMD RGB 5050 | 16 pcs SMD RGB 5050 | 16 pcs SMD RGB 5050 |
Pixles | 36Â pixels | 1Â pixel | 16Â pixles | 16Â pixles |
Emitting angle | 120 degrees | 120 degrees | 120 degrees | 120 degrees |
Color | ■■■ RGB full color | ■■■ RGB full color | ■■■ RGB full color | ■■■ RGB full color |
Gray Scale | 256 | 256 | 256 | 256 |
Operating Voltage | DC 12-24V | DC 12V | DC 12-24V | DC 12-24V |
Power | 12W | 10W | 6W | 6W |
Model NO. | NSS-P150DMX3636 | NSS-P150DMX3601 | NSS-P250DMX1616 | NSS-P300DMX1616 |
Dimension | 150*150MM | 150*150MM | 250*150MM | 300*300MM |
Pitch | P25MM | P150MM | P62.5MM | P75MM |
Control Protocol | DMX512 | |||
Control Mode | DMX Artnet / DMX DVI / Standalone Control | |||
Address Setting | Automatically/ Manually | |||
PCB Material | Standard FR4 PCB Panel | |||
PCB Color | White color or other customized | |||
LED Source Life | 50,000 hours, based on test data of LED manufacturer | |||
Temperature | -4℉ to 122℉(-20℃ to 50℃) operating temperature | |||
Humidity Range | 0 to 95% non-condensing | |||
Protection | IP20 | |||
Package | Carton | |||
Note | Custom-made housing is available |
