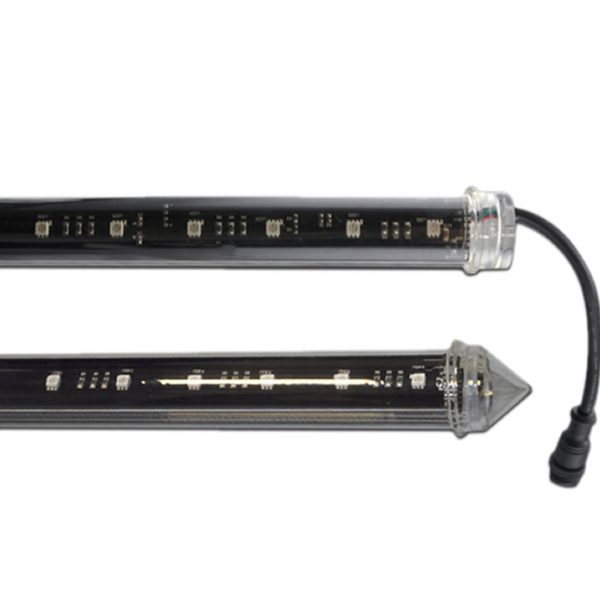

DMX SPI 0.5m 1m 1.5m 2m ws2811 ws2812 ws2813 ws2815 UCS1903 SK6812 RGB RGBW Addressable 3D LED Tube
- Description
- Inquiry
1. Dimension: 0.5m, 1m, 1.5m, 2m length
2. 8W, 15W, 22W, 30W for different length, DC 15V input
3. Clear PC cover giving 360° viewing
4. IP65 waterproof with good design of the housing
5. SPI IC control, 3D pixel mapping to set on the software programming
6. Protections: short circuit, over current , over temperature
7. With working life-span at least 50,000hrs
8. Easy control with Iseeled DMX SD card control or Online Lightning 12/30 and DMX DVI LED control
Application: 3D Vision figure, Interior design for clubs, museums,
themed environments, Stage video elements for intimate or large concert productions, Television awards and game shows, Video Art projects
| Model NO. | NSS-T05S32-15 | NSS-T10S64-15 | NSS-T15S96-15 | NSS-T20S128-15 |
| Diameter | 15mm | 15mm | 15mm | 15mm |
| Length | 500mm | 1000mm | 1500mm | 2000mm |
| Color | â– â– â– Â SMDÂ RGBÂ 5050 | |||
| LED QTY | 32LEDs | 64LEDs | 96LEDs | 128LEDs |
| Pixel QTY | 8 pixels | 16Â pixels | 24 pixels | 32 pixels |
| Control Protocol | SPI DMX | |||
| Operating Voltage | DC15V | DC15V | DC15V | DC15V |
| Max Power | MAX=8W | MAX=15W | MAX=24W | MAX=30W |
| LED Source Life | 50,000hours,based on LED manufacturers’ test data | |||
| Housing | Clear cover | |||
| Temperature | -4℉ to 122℉(-20℃ to 50℃) operating temperature | |||
| Humidity Range | 0 to 95% non-condensing | |||
| Protection | IP65 | |||
| Net Weight | 0.122kg/pc | 0.244kg/pc | 0.345kg/pc | 0.467kg/pc |
Related Products

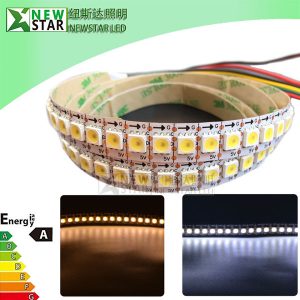

Dotstar APA107 White Pixel Digital LED Strips
 APA107 is same protocol with APA102, can use same PCB, LED contoller and programs as APA102.
 APA107 White is a type ic for the three-color White Diming control strip and string,3000K/4000K/6000K options. This ic using the CMOS process to provide three-color White LED output driver to adjust the output with 256 gray scale and 32 brightness adjustment ,APA107 White LED with 2 signal output way , one is clock ,another is data, the clock and data is synchronizated ,so that the crystal cascade piece of output movement is sychronizated.If you need high PWM, please choose APA107 upgrade type, named NS107S, 27KHZ PWM.

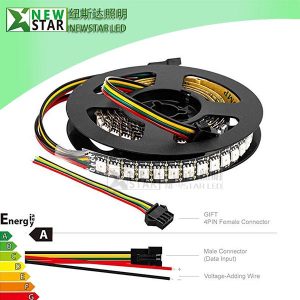

RGB Pixel Addressable SK9822 LED Strips
 Individually addressable.SK9822IC built in SMD5050 LED. Same function as APA102C.APA102C and SK9822 are almost the same.
Two-signal. DATA and CLOCK .More stable and faster. It is more stable than a single signal.High intensity and Reliability, Long lifespan .Higher technical content.Better lighting effect
3M adhesive tape. Low carbon, no radiation, no flicker, and no pollution to human and environment. Safe and stable.
 But we suggest you use APA107 LED Strips to replace SK9822 LED Strips, they are almost same price, but APA107 with better quality and performance.White/Black WS2812 SK6812 Pixel LED Ring
Newstar’s ws2812 Pixel LED rings are chainable – connect the output pin of one to the input pin of another. Use only one microcontroller pin to control as many as you can chain together! Each WS2812 LEDs is addressable as the driver chip is inside the LEDs. Each one has 18mA constant current drive so the color will be very consistent even if the voltage varies, and no external choke resistors are required making the design slim. Power the whole thing with 5VDC.
Addressable CCT Adjustable DMX512 Pixel LED Strips
Addressable CCT Adjustable DMX512 Pixel LED Strips
Digital DMX512 addressable RGBW LED Strips
Newstar’s DMX512 led strips adopt DMX512 protocol, can be controlled by DMX controller without any decoder.
Five cables, +5V(12v, 24V), PI address writing wire, A(DA+), B(DA-), GND.

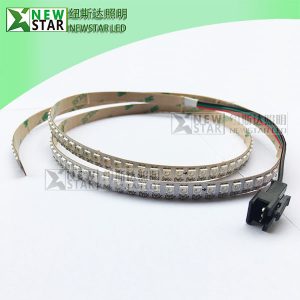

Voltage: DC5V, DC12V, DC24VSK6812 3535 180LEDs/m LED Strip
