DMX RGB 3D LED Ball Module 360d round dmx pixel ball
- Description
- Inquiry

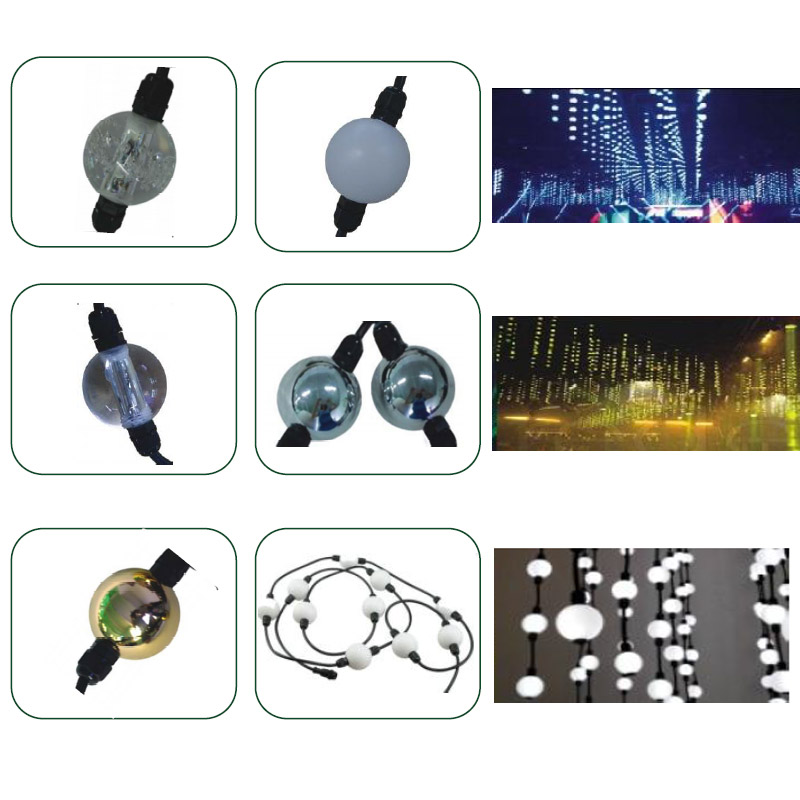

3D LED Ball

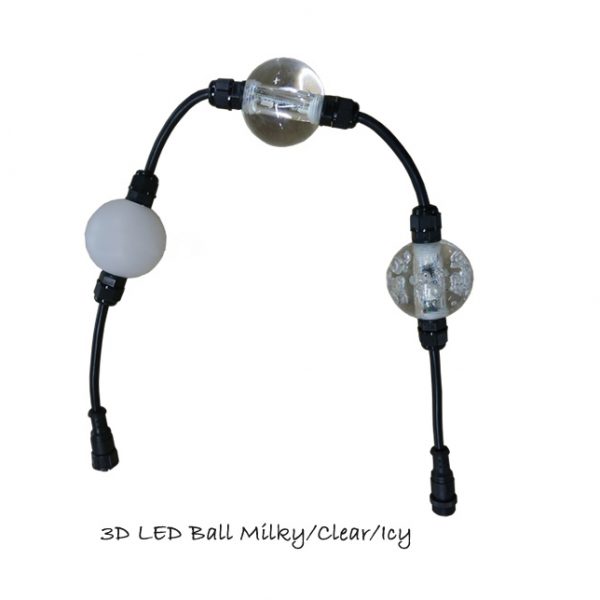

1.ɸ50mm and ɸ40mm LED Ball, opaque Milky/Clear/Icy/Silver/Gold giving 360° viewing
2.Standard DMX 512 control, manual addressing .Customized pitch with customized ball QTY/String
3.High Brightness and long service life LED, 4 leds in one LED ball
4.Protections: short circuit, over current , over temperature.
5.With working life-span at least 50,000hrs;
6.Easy to install, Max Length 5M/ string
Application: adapted for all kinds of installation methods including, stage, club, concert and so on.
| Model NO. | NSS-B50DMX04013D | NSS-B40DMX04013D |
| Housing Diameter | 50mm | 40mm |
| LEDÂ type | SMDÂ RGBÂ 5050 | SMDÂ RGBÂ 3535 |
| LEDÂ QTY | 4Â Leds | 4Â Leds |
| Emitting angle | 360 degrees | 360 degrees |
| Color | ■■■ RGB full color | ■■■ RGB full color |
| Gray Scale | 256 | 256 |
| Operating Voltage | DC 15V | |
| Power | MAX=1W | |
| Control Protocol | DMX512 | |
| Control Mode | DMX Artnet / DMX DVI / Standalone Control | |
| Housing Color | Frosted/Clear/Sliver/Golden/Icy | |
| Protection | IPÂ 54/Â IP65 | |
| LED Source Life | 50,000 hours, based on test data of LED manufacturer | |
| Note | Pitch and Qty for each string can be customized | |
