Flexible COB LED Strip Lights Series
What is COB?
COB is the abbreviation of the Chip On Board. The means is to directly package the chip on the circuit board. It is a kind of LED integrated package technology.
What is COB led strip light?
The COB led strip is a high-density led lighting strip made by COB encapsulation, which can reduce the thermal resistance of the high-density strip circuit system, greatly improves the life of the LED, and the light flux density is high, the glare is small, and the light is uniform and there is no dark area.
Product Specification
Product Name | Single Color COB LED Strip Light | |
Model | NS-COB528-24V | NS-COB384-24V |
LED Light Source | LED Chip with COB Package | LED Chip with COB Package |
LED QTY/M | 528LEDs | 384LEDs |
PCB Thickness | 2oz | 2oz |
PCB Color | White | White |
Tape | Blue conduct heat adhesive tape | Blue conduct heat adhesive tape |
Length per reel | 16.4′ (5M) or 32.8′(10M) | 16.4′ (5M) or 32.8′(10M) |
Standard Connector | 20AWG red/black cable on the end | 20AWG red/black cable on the end |
Length of Cuttable | 45.5Â mm | 41.6Â mm |
PCB width | 10Â mm | 8Â mm |
LED Strip Dimension | 10mm (Width) *2.3mm(Height) *Length | 10mm (Width) *2.3mm(Height) *Length |
Length | 5000mm (16.4ft) per roll | 5000mm (16.4ft) per roll |
Length of Connection Cable | 150mm length | 150mm length |
CCT and RGB
Product Name | CCT / RGBÂ COB LED Strip Light | |
Model | NS-COB608-12V/24V | NS-COB768-12V/24V |
LED Light Source | LED Chip with COB Package | LED Chip with COB Package |
LED QTY/M | 608LEDs | 768LEDs |
PCB Thickness | 2oz | 2oz |
PCB Color | White | White |
Tape | Blue conduct heat adhesive tape | Blue conduct heat adhesive tape |
Length per reel | 16.4′ (5M) or 32.8′(10M) | 16.4′ (5M) or 32.8′(10M) |
Standard Connector | 22AWG 3 color cable on the end | 22AWG 4 color cable on the end |
Length of Cuttable | 26.31Â mm | 31.26Â mm |
PCB width | 10Â mm | 10Â mm |
LED Strip Dimension | 10mm (Width) *2.3mm(Height) *Length | 10mm (Width) *2.3mm(Height) *Length |
Length | 5000mm (16.4ft) per roll | 5000mm (16.4ft) per roll |
Length of Connection Cable | 150mm length | 150mm length |
Electrical Parameters
Model | NS-COB528-12V/24V | NS-COB384-12V/24V |
Color | 2500K, 3000K, 4000K, 6000K | 2500K, 3000K, 4000K, 6000K |
Input Voltage | DC12V/24V | DC12V/24V |
Ra | >90 | >90 |
LED Beam Angle | 180° | 180° |
Lumen Output/M | 1200 / 1250 / 1300 / 1350 | 800 / 850 / 900 / 950 |
Work Temperature | -20~60° | -20~60° |
Working Humidity | 40%-70%RH | 40%-70%RH |
Working Lifetime | 25,000+ hours | 25,000+ hours |
Power | 14W | 10W |
Warranty | 3 years | 3 years |
CCT / RGB
Model | NS-COB608-12V/24V | NS-COB768-12V/24V |
Color | 2700K~ 6000K adjust | RGB |
Input Voltage | DC12V/24V | DC12V/24V |
Ra | >90 | >90 |
LED Beam Angle | 180° | 180° |
Lumen Output/M | 1000 | 3000mcd |
Work Temperature | -20~60° | -20~60° |
Working Humidity | 40%-70%RH | 40%-70%RH |
Working Lifetime | 25,000+ hours | 25,000+ hours |
Power | 14W | 14W |
Warranty | 3 years | 3 years |
Dimension:
COB led strip can be folded in 180 degrees without damaging the light strip. It is very flexible to use.
It has better tenacity, can be arbitrary bending.
Features:
- Use COB packaging technology, high brightness, low light decay, the life expectancy of up to 25,000 hours;
- Luminous color: 2700K, 3000K, 4000, 6000K;
- All raw materials are RoHS compliant;
- Easy to install and maintain. It can be bent at will, at back have 3M adhesive tape, and the daily maintenance is convenient;
- The high luminous efficiency and uniform illumination;
- 180° light-emitting area, good light-emitting effect;
Application:
- Letter signage backlight
- Building Decoration
- Auditorium walkway lighting
- Advertising signs, lightbox lighting
- Landscape decoration

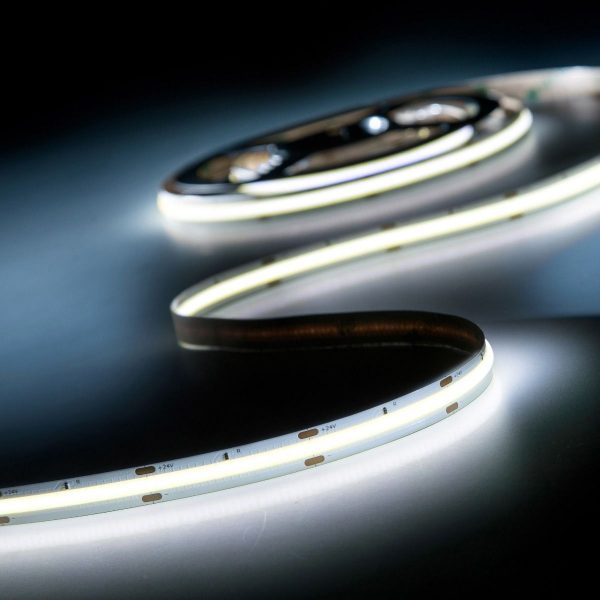

Product Images:
The COB led strip light with aluminum slot installation lighting effect
Normally, the light strips used in the aluminum profile are conventional led strips, it always has a dark area every unit length.
If you want to have no dark area in the lighting effect, you can use high-density led strip, but this does not the best way to solve the problem of dark space spacing.
COB led strip light with higher density led chips will be a better effect about solve the lighting dark area.
The model of the aluminum profile used in the above figure is ns-2407, The height of this aluminum slot is 7mm, which means that the distance between the cob led strip and the PC cover is only 5mm.
However, It can be seen from the photo that, even the led strip light has such a close distance from the white PC cover, there is no significant illumination dark area appears, so it will give us a better linear lighting experience.
Please leave us a message about any problems with the led strip light. We would love to hear from you and provide you with the products you need.
