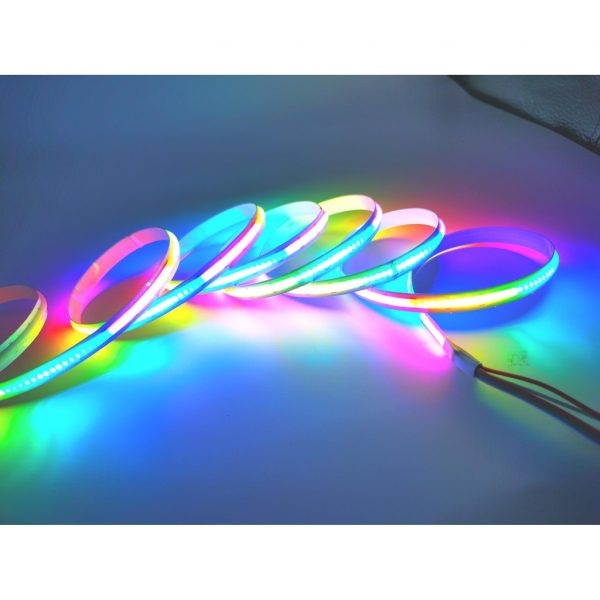

Digital DC5V-24V SK6812 WS2813 WS2815 APA102 APA107 HD107S SK9822 HD108 RGB RGBW COB LED Tape light
Digital DC5V-24V SK6812 WS2813 WS2815 APA102 APA107 HD107S SK9822 HD108 RGB RGBW COB LED Tape light
- Description
- Inquiry
- LED Type： Addressable cob dot-free
- IC： WS2811
- LED Qty： 720 LEDs/m
- Copper Foil： 3oz
- Cutting Unit： 50mm
- Beam Angle： 180°
- Dimension： 5000*12*2.0mm
- Bend Diameter： ＞60mm
- Input Voltage： DC24V
- Color： RGB
- Typ.Power： 23W/mÂ
- CRI： –
- Input Current： 1.9A/mÂ
- IP Rate： IP20 / IP67
- Power Option： –
- Energy Efficiency Class： A+
Dimensions
Length: 5M(16.4′)/rollCutting Unit: 50mm(1.97′′)FPC Width: 10mm(0.472′′)LED Height: 2.0mm(0.0787′′)Mounting: 3M tapeMin. Bend Diameter: Φ60mm(2.362′′)IP Rate: IP20 / IP67
Related Products
RGB Pixel Addressable SK9822 LED Strips
 Individually addressable.SK9822IC built in SMD5050 LED. Same function as APA102C.APA102C and SK9822 are almost the same.
Two-signal. DATA and CLOCK .More stable and faster. It is more stable than a single signal.High intensity and Reliability, Long lifespan .Higher technical content.Better lighting effect
3M adhesive tape. Low carbon, no radiation, no flicker, and no pollution to human and environment. Safe and stable.
 But we suggest you use APA107 LED Strips to replace SK9822 LED Strips, they are almost same price, but APA107 with better quality and performance.SK6812 WS2812B Flexible LED Display
 Newstar’s SK6812/WS2812B Flexible led display, each LED is individually addressable, you can set each SK6812/WS2812B LED as you wish to scroll messages or draw little images.
Newstar’s flexible led display is wide compatibility. It works great with Arduino, Raspberry Pi, FastLED library, Adafruit NeoPixel Library, Rainbowduino, SP103E, SP105E, K1000C,T1000S, etc.
SK6812/WS2812B led display with chainable and bendable design. You can extend the panel by hooking them up one by one with the 3pin JST connectors. Flexible FPCB can be gently bent and curved around surfaces.
It works almost the same as NeoPixel but much cheaper than NeoPixel. It is sturdy, beautiful and very comparable to other similar products.Digital Pixel LED Strips Addressable Neon Flex
 Digital Pixel Neon Flex LED Strip lights is our high standard quality digital rgb flexible led strips inside the neon tube.With DC5V APA107 NS107S WS2812B sk6812b APA102 WS2813 SK6812 RGBW IC inside,it can easily achieve the advanced changing and programmable scenes and other dream color function.Perfect for creating a stunning visual display. Achieve advanced lighting scenes. IP68 waterproof Widely used for home decoration use, hotels, clubs, shopping malls etc.
WS2811 1LED/Pixel Addressable LED Strips
Newstar’s WS2811 LED Strip can be White/RGB/RGBW/RGBCCT color, as the WS2811 IC is external, not built-in the LEDs, so we can use all kinds of LEDs to make the pixel led strips we need, such as RGB/RGBW/RGBCCT/CCT/White LEDs.
For example, 8000k/10000k white addressable led strips, CCT adjustable 3000k to 10000k pixel addressable led strip, rgbcct addressable led strips…etc.Addressable WS2813 3535 Pixel Digital LED Strips
WS2813 Pixel Digital LED Strip Lights adopt WS2813 led chip with dual signal to be the light source,and the capacitance is package in the led chip, so you can see there are no capacitances on the PCB. WS2813 Pixel Digital LED Strip Lights is more stable than another pixel digital led strip lights, as one led is broken will not affect another LED Working.
Pixel Digital SK6812 RGBW LED Strips
 SK6812 RGBW is a smart LED control circuit and light emitting circuit in one controlled LED source,which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator.
APA107 3000K+6000K Mixed White Pixel LED Strips
APA107 3000K+6000K Mixed White Pixel LED Strips
NS107S RGB Pixel Digital LED Strips upgrade of APA107
NS107S LED Strip, the PWM refresh rate is more than 27kHz, run speed can be 40Mhz, faster and much better than Dotstar APA102.
NS107S series have 5050/3535/2020 size RGB and White color LED chip, it has the highest PWM refresh rate.New APA105 144LEDs 10mm PCB Pixel LED Strips
New APA105 LEDs with built-in Capacitance
DC5V built-in IC
30/60/72/144leds is available
Same protocol with SK6812/WS2812B, don’t need change any circuit board.Dotstar APA107 White Pixel Digital LED Strips
 APA107 is same protocol with APA102, can use same PCB, LED contoller and programs as APA102.
 APA107 White is a type ic for the three-color White Diming control strip and string,3000K/4000K/6000K options. This ic using the CMOS process to provide three-color White LED output driver to adjust the output with 256 gray scale and 32 brightness adjustment ,APA107 White LED with 2 signal output way , one is clock ,another is data, the clock and data is synchronizated ,so that the crystal cascade piece of output movement is sychronizated.If you need high PWM, please choose APA107 upgrade type, named NS107S, 27KHZ PWM.
