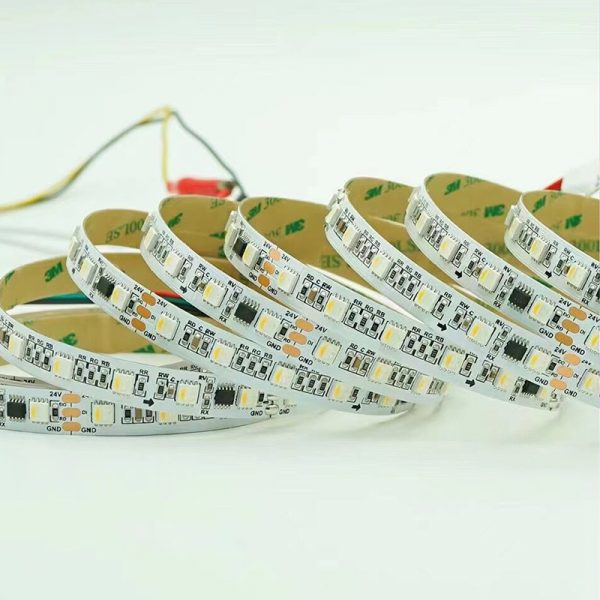

UCS8904 16bit RGBW LED Pixel Tape DC24V 60leds 100pixels

UCS8904 offers all the same features as its RGB version, UCS8903, but is dedicated to RGBW. The control circuit comes in a SOP8 package, allowing for more flexibility with LED choice.

Advantages

• Up to 24V, allowing for very long cable lengths
• High PWM rate allows for filming these pixels with cameras up to 34fps
• 16 bits of data for each color makes dimming curves very smooth
• Presence of white LED allows for higher brightness and more color mixing options

UCS8904 16bit RGBW LED Pixel TapeSpecification,
Led type: 5050 RGBW leds ( 4 in one RGBW LEDs)
IC type: UCS8904
PCB Width:10mm
Led lighting angle: 120°
LED Q’ty: 30leds/m, 60led/m.
IP Rating IP30, IP65, IP67, IP68.
colour temperatur : 3000K
voltage: 24V current, 60mA maximum per pixel (full white LED mixet by RGB)
working temperature: -15 bis + 60 °C
protection class (LEDs): IP30
lifetime: > 50000h
Total length: 5 meters
width: 10 mm
heigh: 2.4 mm
Single-flow, gradient, chase, scan and other full-color effects;
Splicing to achieve text movement and video animation and other dynamic effects;
Can be bend and cut, can achieve a certain curvature and length of the modeling screen;
6 LED 1 IC with D24V ,3 LED with 1IC with DC12V, can be made into high-density high-definition display;

Please send us email if you need UCS8904 Pixel RGBW LED Tape datasheet.
