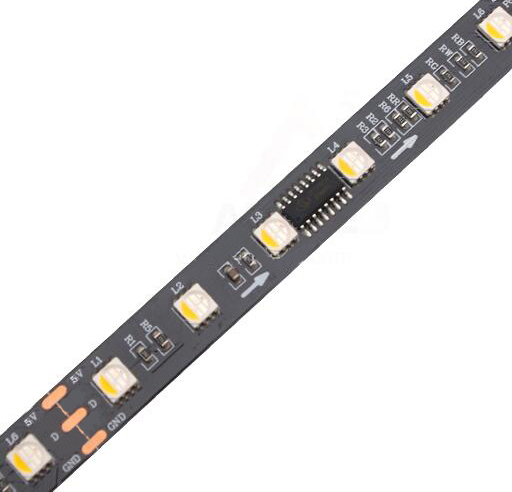

UCS9812 16bit RGBW LED Pixel Tape DC5V DC12V DC24V 60leds/m

UCS9812 is equipped with all the same features as its previous version, UCS8903, but supports 4 RGB pixels / 3 RGBW pixels off the one chip. The control circuit comes in a SOP16 package, allowing for more flexibility with LED choice.

Advantages

• DC5V, although it looks like same with normal DC12V type, 3leds one pixel, but one IC can control 3leds seperately.
• DC12V, one IC can control 27pcs RGBW LEDs seperately.
• DC24V, one IC can control 36pcs RGBW LEDs seperately.
• Up to 24V, allowing for very long cable lengths
• High PWM rate allows for filming these pixels with cameras up to 35fps
• 16 bits of data for each color makes dimming curves very smooth
• Drives 4 pixels off a single SOP16 chip.

UCS9812 16bit RGBW LED Pixel Tape Specification,
Led type: 5050 RGBW leds ( 4 in one RGBW LEDs)
IC type: UCS9812
PCB Width:12mm
Led lighting angle: 120°
LED Q’ty: 30leds/m, 48leds, 60led/m, 72leds, 84leds. 96leds all can be customized
IP Rating IP20, IP65, IP67, IP68.
colour temperatur : RGBW 3000K, RGBW 4000K, RGBW 5500K, RGBW 6000K
voltage: 24V current, 60mA maximum per pixel (full white LED mixet by RGB)
working temperature: -15 bis + 60 °C
protection class (LEDs): IP30
lifetime: > 50000h
Total length: 5 meters
width: 10 mm
heigh: 2.4 mm
Single-flow, gradient, chase, scan and other full-color effects;
Splicing to achieve text movement and video animation and other dynamic effects;
Can be bend and cut, can achieve a certain curvature and length of the modeling screen;

Please send us email if you need UCS98124 Pixel RGBW LED Tape datasheet.
