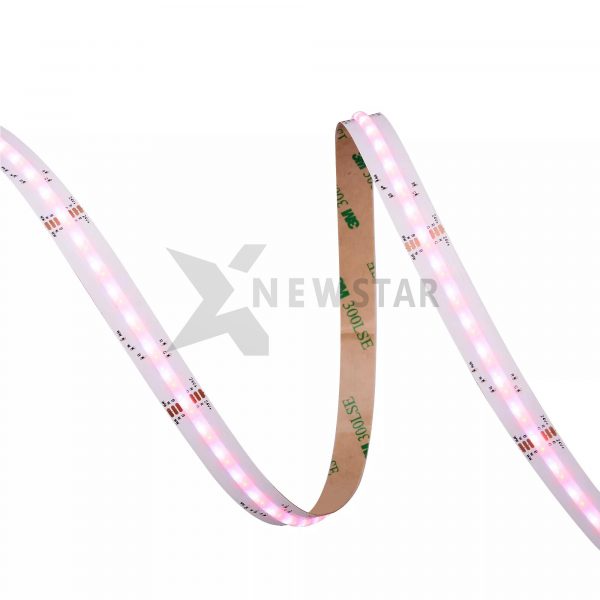

RGBCCT COB LED STRIP-3

840leds COB RGBCCT Dotsfree LED Tape DC12V DC24V IP20 IP65 IP67 IP68

COB RGBCCT LED Tape is designed to offer customers perfect colorful lighting experience.
RGB+2700+6500K RGB CCT Adjustable.
Full color range, 16 millions of mixed colors for you to choose which can make amazing colorful lighting effects.
  • LED Type: COB
  • LED Density: 560LEDS/M
  • Input Voltage: 24V DC
  • Power: 16W/M
Categories: , , , , Tags:
  • Description
  • Inquiry

COB LED Strip Features:

  • New COB Packing technology in the flexible PCB.
  • Dot free without cover.
  • 41.66mm length short cut design.
  • 2 OZ  FPC, original high quality 3M 9495LE tape, with special design strong package. LED with LM-80 Test approval.
  • Energy-saving and environment-friendly.
  • Customized service available, customized MOQ>500M, 5 Years Warranty.
  • IP Rating Option: IP20/IP67.
Model No LED Density    Color Cutting Unit Work Voltage PCB Size Peak Power
NSS-COB-840RGBWW 840 leds/m      RGB&(2700-6500K) 41.66mm(24V) 24V DC 5000*12mm*2oz 25W/M
LED Type    COB Input Voltage 24V DC
Color RGB&(2700-6500K) Peak Power Per Meter 25w/m
LED Density 840 pcs/m Power Per Roll ( 5 meters) 125 w/roll
Cuttable Segments 41.66mm Lumen /
PCB Type/Color 2 oz, White PCB Ra 80
PCB Width 12 mm IP Grade IP20/IP67
Max Run Length 5 m Warranty 5 Years
Reel Length 5 m Certification UL CE  RoHS



RGBCCT COB LED Strip:

1.RGBCCT COB LED strip is designed to offer customers perfect colorful lighting experience.

2.RGB+2700~6500K CCT Adjustable.
3.Full color range, 16 millions of mixed colors for you to choose which can make amazing colorful lighting effects.
4.Better bending performance with flip chips.
5.More efficient heat transfer with chips direct on pcb.

NSS-COB-560RGBWW

  Basic Parameters
  Size   5000*12mm 2 oz(35/35)
  LED Type   COB
  LED Qty/M   840
  Input Voltage   24V DC
  Cutting Unit   41.66mm(24V)
  Input Current   1.04A/M
  Max Power/M   25W/M
  Bend Diameter   >60MM
  IP Grade   IP20/IP67
  Photo-electric Parameters
  CRI   >80
  CCT   RGB&(2700-6500K)
  LM/M   /
  Energy Efficiency Class   F

We Newstar has the most Full range of COB LED STrip choices

  Color   2200k,2700k,3000k,4000k,6000k,CCT,Red,Green,Blue,Yellow,RGB,RGBW,RGBWW,RGBCCT,Digital
  LEDs/M   320/336/384/400/512/528/576/864
  Power/M   5w/8w/9w/11w/12w/15w
  LM/M   600lm/700lm/900lm/1100lm/1500lm
  CRI   CRI80,CRI90,CRI95
  FPC Width   3mm/4.5mm/5mm/8mm/10mm/12mm
  Voltage   5V/12V/24V /36V/48V/DC
  IP Grade   IP20,IP66,IP67,IP67S,IP68



Waterproof IP Grade

Led connectors for cob strip
