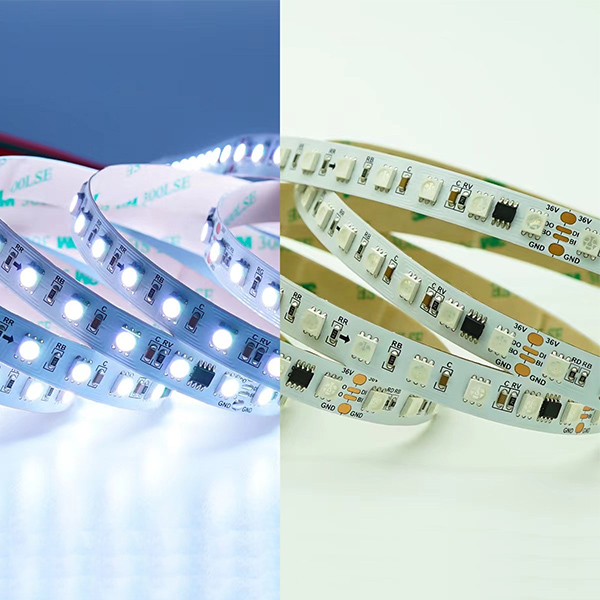

UCS1903 DC36V 72LEDs RGB Pixel LED strips 25m long length addressable led
ucs1903,
dc36v,
72leds/m,
25m without brightness drop,
- Description
- Inquiry
- Specifications
| Product Type | : | 30LED/meter | 60LED/meter | 72LED/meter |
| Product Code | : | NSS-1903RGBS30-36 | NSS-1903RGBS60-36 | NSS-1903RGBS72-36 |
| CRI | : | <95 | <95 | <95 |
| Kelvin | : | RGB | RGB | RGB |
| PCB Color | : | White/Black | White/Black | White/Black |
| Current, Rating | : | 0.25A / meter | 0.5A / meter | 0.58A / meter |
| Voltage | : | 36VDC | 36VDC | 36VDC |
| Wattage | : | 9W / meter | 18W / meter | 21W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage | Constant Voltage |
| IP Rating | : | IP20/IP65/IP67 | IP20/IP65/IP67 | IP20/IP65/IP67 |
| Lumens @ Full | : | / | / | / |
| Lumen / Watt | : | 75 | 75 | 75 |
| Lifetime* | : | 40,000 hours | 40,000 hours | 40,000 hours |
| Cutting Length | : | 200MM | 100MM | 83.3MM |
| LED Quantity | : | 30LED / meter | 60LED / meter | 72LED / meter |
| Number of Contacts | : | 3 | 3 | 3 |
| LED Type | : | UCS1903 | UCS1903 | UCS1903 |
| Copper Quantity | : | 3 Oz. | 3 Oz. | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C | 70 C | 70 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C | -40 C |
| Agency Ratings | : | CE, RoHS | CE, RoHS | CE, RoHS |
| PCB Width | : | 12 MM | 12 MM | 12 MM |
| Maximum Recommended Length | : | 5 meters | 5 meters | 5 meters |
| Viewing Angle | : | 120 degree | 120 degree | 120 degree |
| Adhesion | : | TESA 4965 | TESA 4965 | TESA 4965 |
| Wavelength A | : | 620 ~ 625nm | 620 ~ 625nm | 620 ~ 625nm |
| Wavelength B | : | 515 ~ 520nm | 515 ~ 520nm | 515 ~ 520nm |
| Wavelength C | : | 460 ~ 465nm | 460 ~ 465nm | 460 ~ 465nm |
| Wavelength D | : | N/A | N/A | N/A |
| Data Transmission Speed | : | 800 kbps | 800 kbps | 800 kbps |
| Refresh Rate | : | 25 FPS | 25 FPS | 25 FPS |
| Bit Rate | : | 3×8=24 Bit | 3×8=24 Bit | 3×8=64 Bit |
| Data Clock Frequency | : | N/A | N/A | N/A |
| PWM Dimming Frequency | : | 1 KHZ | 1 KHZ | 1 KHZ |
